SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERY (5MT)FIG.51 BATTERY (6AT)FIG.52 SPEEDOMETERFIG.53 HEADLAMPFIG.54 FRONT FOG LAMP (W/FRONT FOG LAMP)FIG.55 REAR LAMPFIG.56 ROOM LAMPFIG.57 WIRING HARNESSFIG.58 ELECTRICAL CONTROLFIG.59 LOCK SETFIG.60 FRONT WINDOW WIPERFIG.61 WINDOW WASHERFIG.62 REAR WINDOW WIPERFIG.63 AUDIO

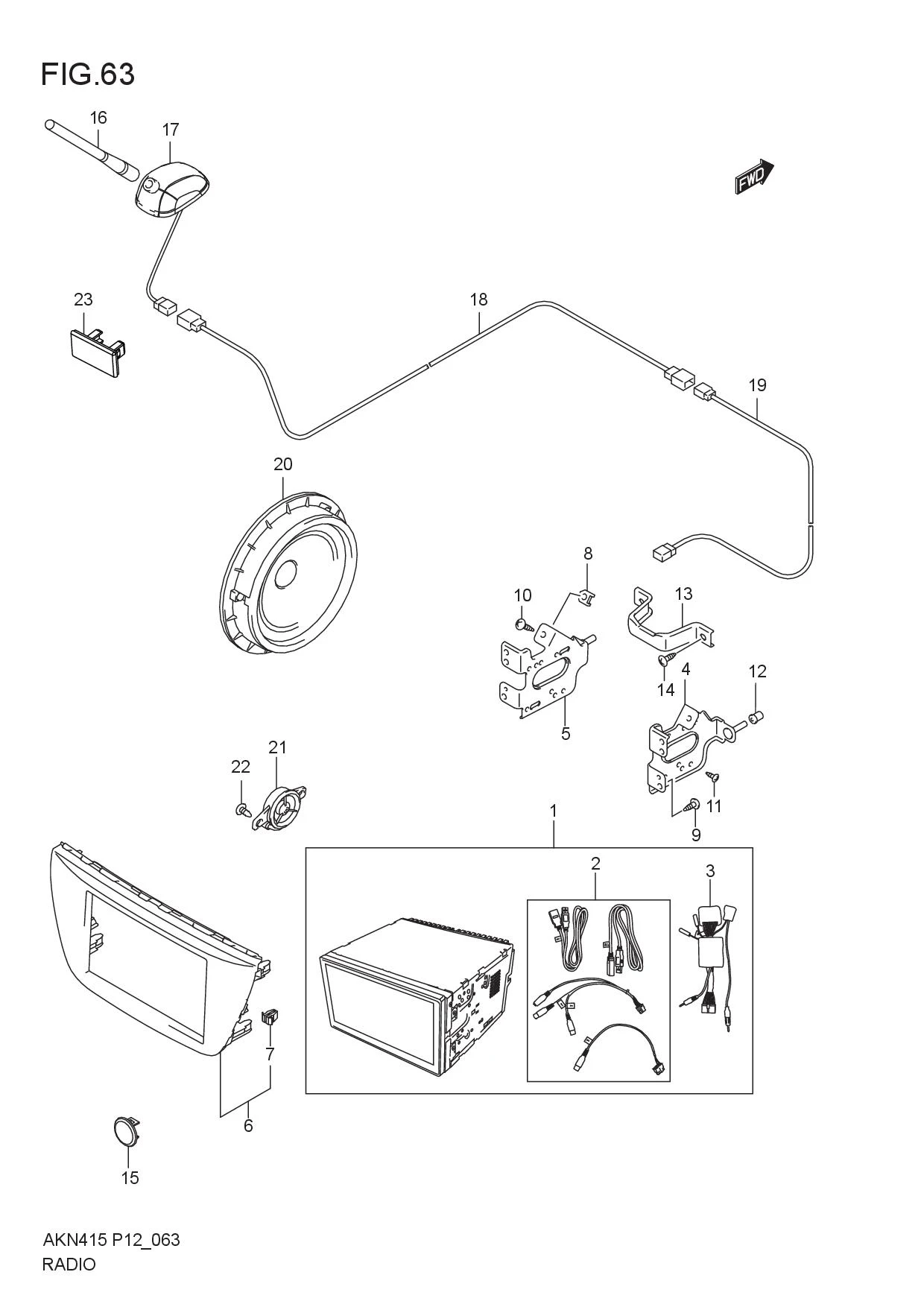

FIG.63 AUDIO

FIG.63 AUDIO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 990H0-990BG-001		 TUNNER SET 1 -
2 DISCONTINUE
SUB: 990H0-990BG-002		 CABLE TUNNER SET 1 -
3 DISCONTINUE
SUB: 990H0-990BG-003		 CABLE TUNNER SET 1 - FROM LOCAL
4 39321M65M10-000 BRACKET, TUNER, RH 1 Rp103.500
5 39322M65M10-000 BRACKET, TUNER, LH 1 Rp103.500
6 73821M61M10-5PK GARNISH, I/P CTR (BLACK) 1 Rp76.500
7 09409-08349-000
SUB: 09409B08342N000		 .CLIP 4 Rp4.500
8 09148M05L04-000 NUT 2 Rp5.000
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
11 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
12 34955M79M00-000 BUSH, TUNER BRACKET 2 Rp18.500
13 73251M65M00-000 BRACKET, I/P CENTER 1 Rp10.500
14 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
15 37275-75J00-000
SUB: 37275B75J00N000		 CAP, USB HOLE 1 Rp11.000
16 39251M74LA0-000
SUB: 39251M74L00-000		 ROD, ANTENNA 1 Rp97.500
17 39253M74LA0-000
SUB: 39253M74L11-000		 BASE, ANTENNA 1 Rp818.500
18 39271M65M00-000 FEEDER, ROOF 1 Rp773.000
19 39270M65M10-000 FEEDER, I/P 1 Rp514.500
20 39102M84R00-000
SUB: 39102M79M00-000		 SPEAKER ASSY 4 Rp569.500
21 39102M65M00-000 SPEAKER ASSY, TWEETER 2 Rp227.500
22 03541-0410A-000 SCREW 4 Rp11.000
23 39977M65M00-000 CAP, BACK CAMERA 1 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
