SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERY (5MT)FIG.51 BATTERY (6AT)FIG.52 SPEEDOMETERFIG.53 HEADLAMPFIG.54 FRONT FOG LAMP (W/FRONT FOG LAMP)FIG.55 REAR LAMPFIG.56 ROOM LAMPFIG.57 WIRING HARNESSFIG.58 ELECTRICAL CONTROLFIG.59 LOCK SETFIG.60 FRONT WINDOW WIPERFIG.61 WINDOW WASHERFIG.62 REAR WINDOW WIPERFIG.63 AUDIO

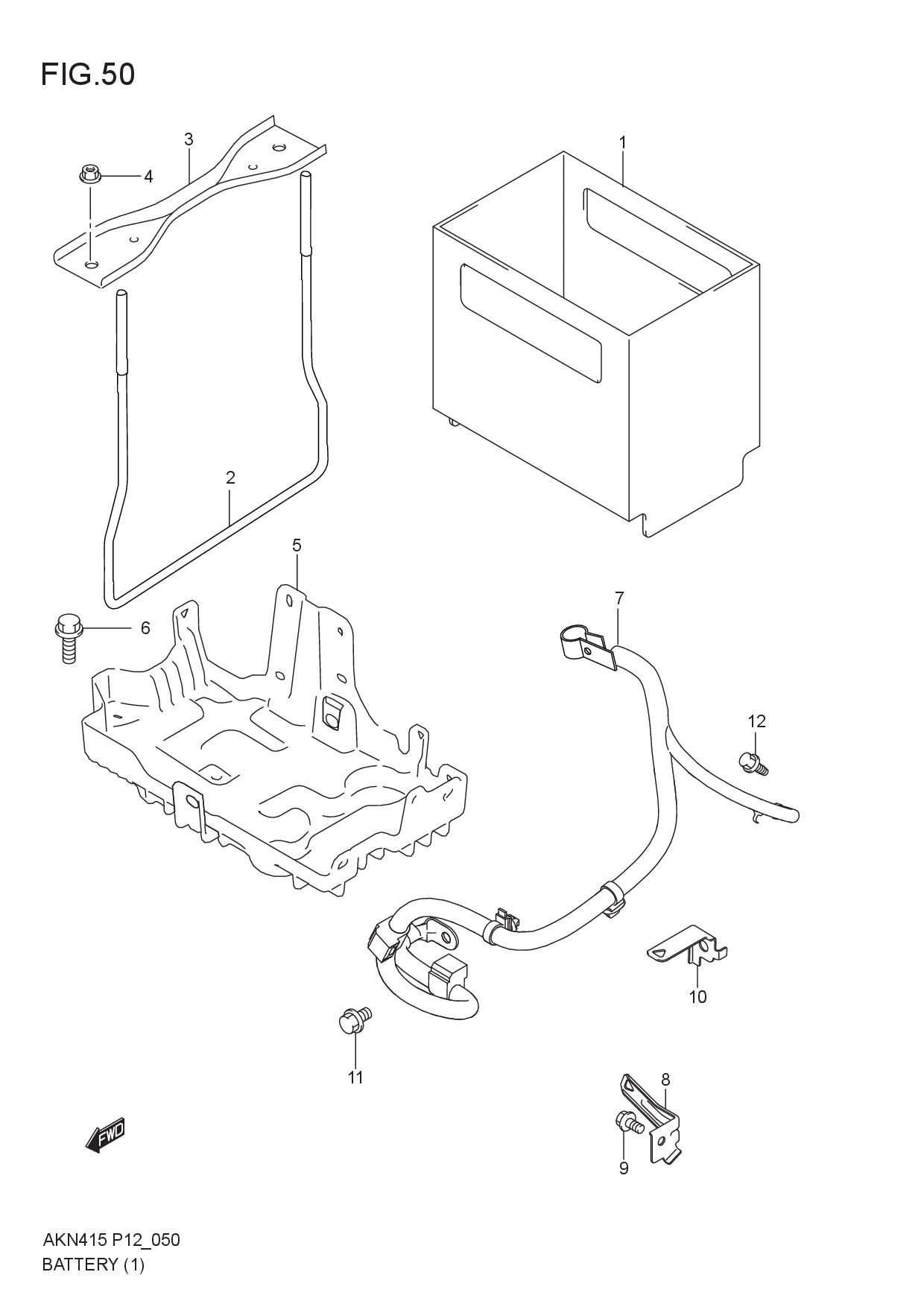

FIG.50 BATTERY (5MT)

FIG.50 BATTERY (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER, BATTERY 1 Rp43.500
2 72512M66M00-000 BOLT, BATTERY 2 Rp58.500
3 72511M55KA0-000 BAND, BATTERY 1 Rp16.000
4 08361-1506A-000 NUT,BATTERY 2 Rp13.000
5 72521M66M00-000 TRAY, BATTERY 1 Rp329.500
6 02162-0625A-000 BOLT, BATTERY TRAY 2 Rp3.500
7 33850M65M20-000 CABLE COMP,BTRY GND 1 Rp299.500
8 36653M61M00-000 BRACKET, BTRY CABLE BODY 1 Rp8.000
9 02162-0612A-000 BOLT, BTRY CABLE BRKT 1 Rp11.000
10 33801-61M00-000 BRACKET,BTRY CABLE 1 Rp36.500
11 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, BTRY GND T/M 1 Rp3.500
12 09115-06005-000 BOLT, BTRY GND BODY 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
