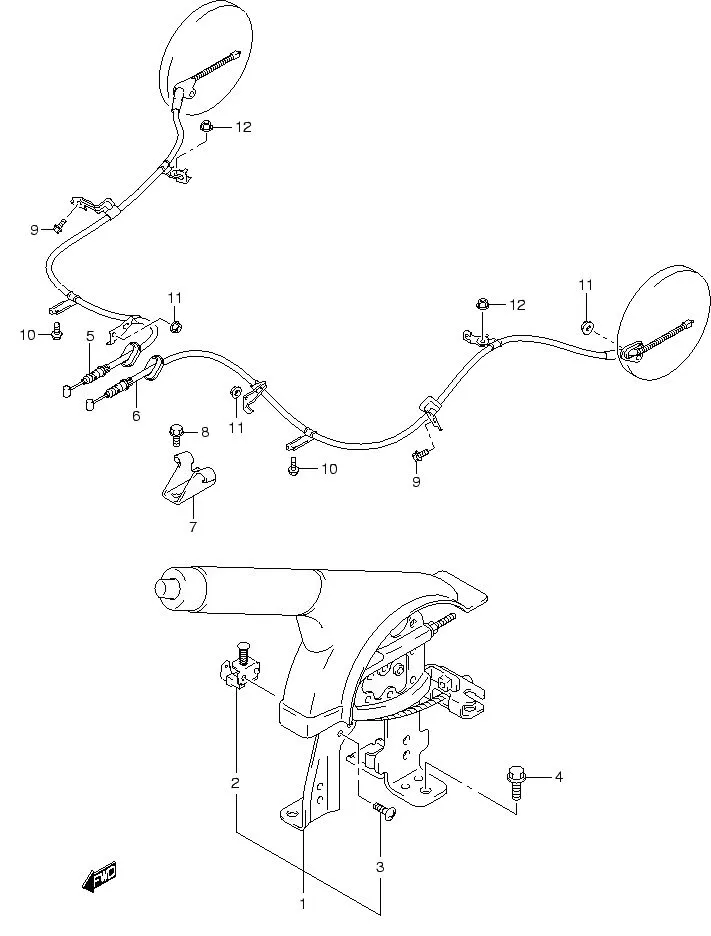

FIG.79 PARKING BRAKE

FIG.79 PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54100-63J00-P4Z		 LEVER ASSY, PARKING BRAKE (GRAY) 1 -
2 37940-59J00-000 •SWITCH ASSY, PARKING BRAKE 1 Rp95.500
3 54115-76G00-000
SUB: 54115B76G00N000		 •SCREW 2 Rp16.000
4 01551-0816C-000 BOLT 2 Rp13.500
5 54401-81K00-000
SUB: 54401B80J00N000		 CABLE, PARKING BRAKE RH 1 Rp252.000
6 54402-81K00-000
SUB: 54402B80J00N000		 CABLE, PARKING BRAKE LH 1 Rp245.000
7 54495-77M00-000
SUB: 54495B76F00N000		 BRACKET, PARKING CABLE 1 Rp23.500
8 01551-0816C-000 BOLT 2 Rp13.500
9 01551-0816C-000 BOLT 2 Rp13.500
10 02162-0616A-000
SUB: 02162-0616C-000		 SCREW 2 Rp3.000
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
12 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
