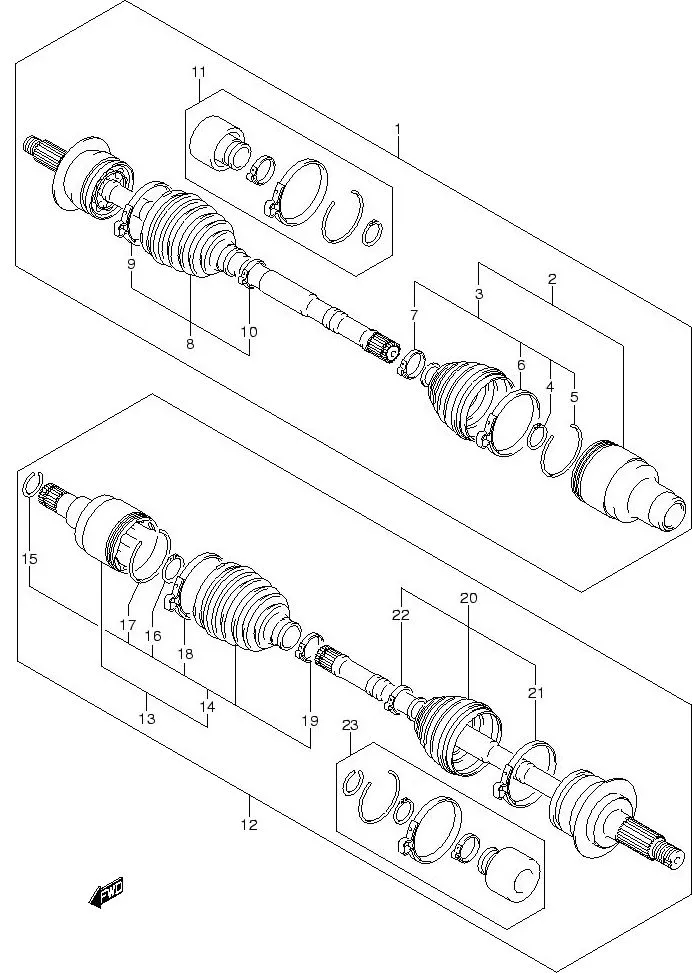

FIG.63 FRONT DRIVE SHAFT (MT)

FIG.63 FRONT DRIVE SHAFT (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 44101-80J03-000
SUB: 44101-80J00-000		 SHAFT ASSY, FRONT DRIVE RH 1 Rp7.095.500
2 44117-57K00-000 •JOINT ASSY, DIFF SIDE RH 1 Rp5.585.500
3 44119-57K01-000
SUB: 44119-57K00-000		 ••BOOT SET, DIFF SIDE 1 Rp852.000
4 44111-53B10-000 •••RING, SNAP 1 Rp18.000
5 DISCONTINUE
SUB: 44112-53B10-000		 •••CIRCLIP 1 -
6 DISCONTINUE
SUB: 44121-79J00-000		 •••BAND, BOOT 1 -
7 DISCONTINUE
SUB: 44121-54G90-000		 •••BAND, BOOT SMALL 1 -
8 44118-57K01-000
SUB: 44118-57K00-000		 •BOOT SET, WHEEL SIDE 1 Rp1.436.000
9 DISCONTINUE
SUB: 44112-63J00-000		 ••BAND, BOOT 1 -
10 DISCONTINUE
SUB: 44121-54G90-000		 ••BAND, BOOT SMALL 1 -
11 DISCONTINUE
SUB: 44125-57K11-000		 •DAMPER SET 1 -
12 44102-80J02-000
SUB: 44102-80J00-000		 SHAFT ASSY, FRONT DRIVE LH 1 Rp7.461.000
13 44117-57K21-000
SUB: 44117-57K20-000		 •JOINT ASSY, DIFF SIDE 1 Rp5.672.000
14 44119-57K21-000
SUB: 44119-57K20-000		 ••BOOT SET, DIFF SIDE 1 Rp852.000
15 44111-79J00-000 •••CIRCLIP 1 Rp40.500
16 44111-53B10-000 •••RING, SNAP 1 Rp18.000
17 DISCONTINUE
SUB: 44112-53B10-000		 •••CIRCLIP 1 -
18 DISCONTINUE
SUB: 44121-79J00-000		 •••BAND, BOOT 1 -
19 DISCONTINUE
SUB: 44121-54G90-000		 •••BAND, BOOT SMALL 1 -
20 44118-57K21-000
SUB: 44118-57K20-000		 •BOOT SET, WHEEL SIDE 1 Rp1.166.500
21 DISCONTINUE
SUB: 44112-63J00-000		 ••BAND, BOOT 1 -
22 DISCONTINUE
SUB: 44121-54G90-000		 ••BAND, BOOT SMALL 1 -
23 DISCONTINUE
SUB: 44125-57K20-000		 •DAMPER SET 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
