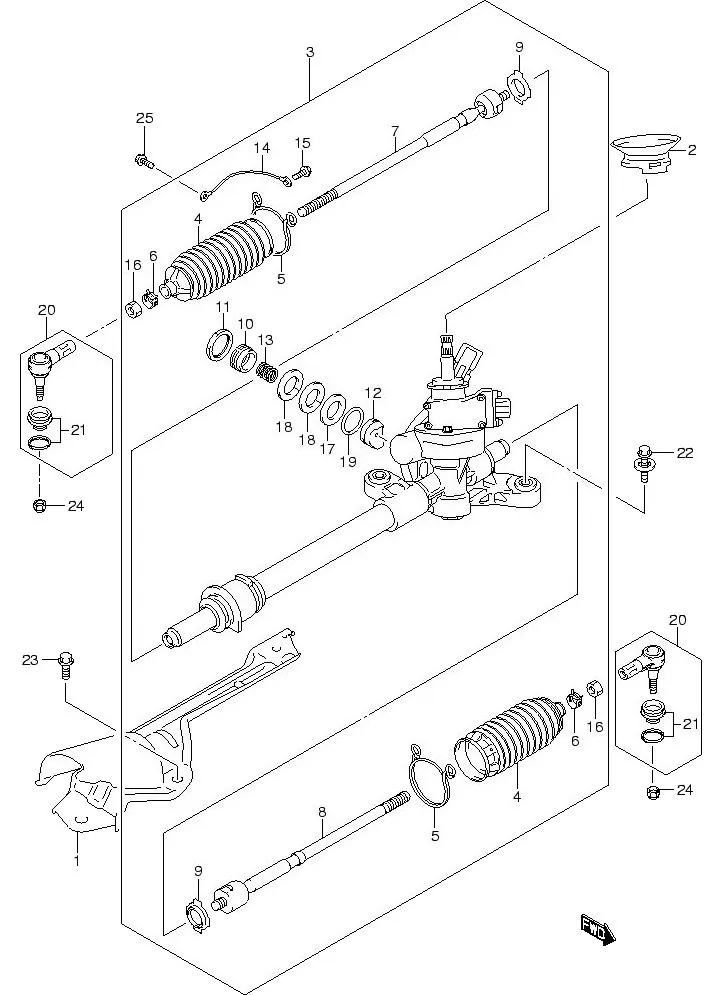

FIG.71 STEERING UNIT

FIG.71 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 45836-79J00-000		 MEMBER, STRG BRACKET 1 -
2 48451-79J00-000 PACKING, STEERING GEAR CASE 1 Rp97.500
3 48580-54L01-000
SUB: 48580-79J00-000		 BOX ASSY, STRG GEAR 1 Rp24.761.500
4 48571-79J00-000 •BOOT, STEERING 2 Rp438.500
5 48575-79J00-000 •WIRE, RACK BOOT 2 Rp110.500
6 48871-79J00-000 •CLAMP, BOOT 2 Rp52.500
7 48830-79J00-000 •TIE ROD, STEERING PINION SIDE 1 Rp914.000
8 48830-79J10-000 •TIE ROD, STEERING RACK SIDE 1 Rp914.000
9 48841-79J00-000 •WASHER, TIE ROD LOCK 2 Rp59.000
10 DISCONTINUE
SUB: 48592-79J00-000		 •PLUG, ADJUSTING 1 -
11 DISCONTINUE
SUB: 48593-79J00-000		 •NUT, PLUG 1 -
12 48534-79J00-000 •PLUNGER, STEERING RACK 1 Rp555.500
13 48591-79J00-000 •SPRING, RACK PLUNGER 1 Rp71.500
14 DISCONTINUE
SUB: 48531-79J00-000		 •WIRE, EARTH 1 -
15 DISCONTINUE
SUB: 48577-79J00-000		 •BOLT 1 -
16 DISCONTINUE
SUB: 48817-79J00-000		 •NUT, TIE ROD END LOCK 2 -
17 48594-79J00-000 •WASHER 1 Rp58.000
18 48595-79J00-000 •SPRING, WASHER 1 Rp64.000
19 48596-79J00-000 •O RING 1 Rp192.000
20 48810-79J01-000
SUB: 48810-79J00-000		 END, STEERING TIE ROD 2 Rp631.500
21 48811-79810-000 •SEAL SET, DUST 2 Rp144.500
22 48528-79J00-000 BOLT, STEERING GEAR BOX NO.1 2 Rp53.000
23 09103-10216-000 BOLT (10X20) 3 Rp31.000
24 DISCONTINUE
SUB: 09159-12053-000		 NUT 2 -
25 DISCONTINUE
SUB: 09115-06006-000		 BOLT (6X16) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
