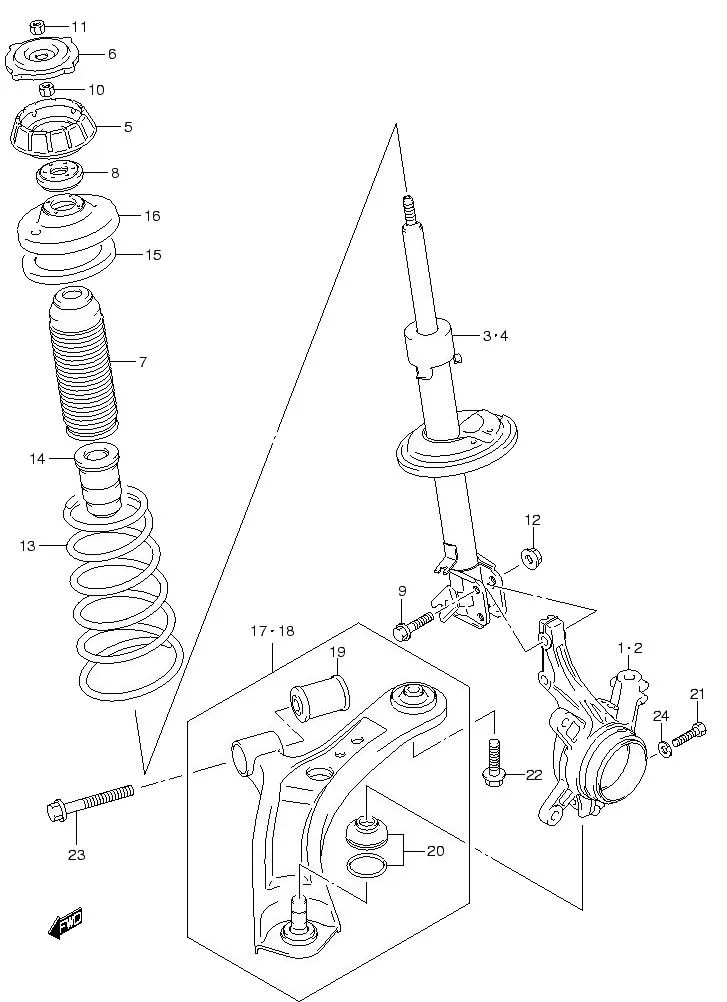

FIG.61 FRONT SUSPENSION

FIG.61 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-80J52-000 KNUCKLE, STEERING RH 1 Rp3.035.500
2 45151-80J52-000 KNUCKLE, STEERING LH 1 Rp3.035.500
3 41601-80J50-000 STRUT ASSY, FRONT SPNSN RH 1 Rp3.057.500
4 41602-80J50-000 STRUT ASSY, FRONT SPNSN LH 1 Rp3.057.500
5 41710-80J00-000 SUPPORT, FRONT STRUT 2 Rp584.500
6 41720-80J02-000
SUB: 41720-80J00-000		 STOPPER, FRONT STRUT REBOUND 2 Rp139.500
7 41931-80J00-000 COVER, STRUT DUST 2 Rp403.500
8 41742-60G00-000 BEARING, FRONT STRUT 2 Rp159.000
9 09103-14032-000 BOLT (14X54) 4 Rp47.500
10 09140-12050-000 NUT 2 Rp21.000
11 08310M0012A-000 NUT 2 Rp5.000
12 09159-14028-000 NUT 4 Rp40.000
13 41111-80JB1-000
SUB: 41111-80JB0-000		 SPRING, FRONT COIL 2 Rp1.269.500
14 42111-80J00-000 STOPPER, FRONT BUMP 2 Rp217.000
15 41211M63J00-000 SEAT, FRONT COIL SPRING UPPER 2 Rp23.000
16 41230-80J00-000 SEAT, FRONT SPRING UPPER 2 Rp276.500
17 45201-54L20-000
SUB: 45201-79J00-000		 ARM ASSY, FRONT SUSPENSION RH 1 Rp2.752.000
18 45202-54L20-000
SUB: 45202-79J00-000		 ARM ASSY, FRONT SUSPENSION LH 1 Rp2.752.000
19 45261-79J00-000 •BUSHING, SPNSN ARM FRONT 2 Rp182.500
20 45714-59811-000
SUB: 45714-59810-000		 •SEAL SET, DUST 2 Rp329.500
21 09100-10169-000 BOLT (10X40) 2 Rp19.500
22 09135-14018-000
SUB: 09135-14010-000		 BOLT (14X75) 2 Rp70.500
23 09135-14011-000 BOLT (14X90) 2 Rp65.500
24 08321-0110A-000 WASHER, LOCK 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
