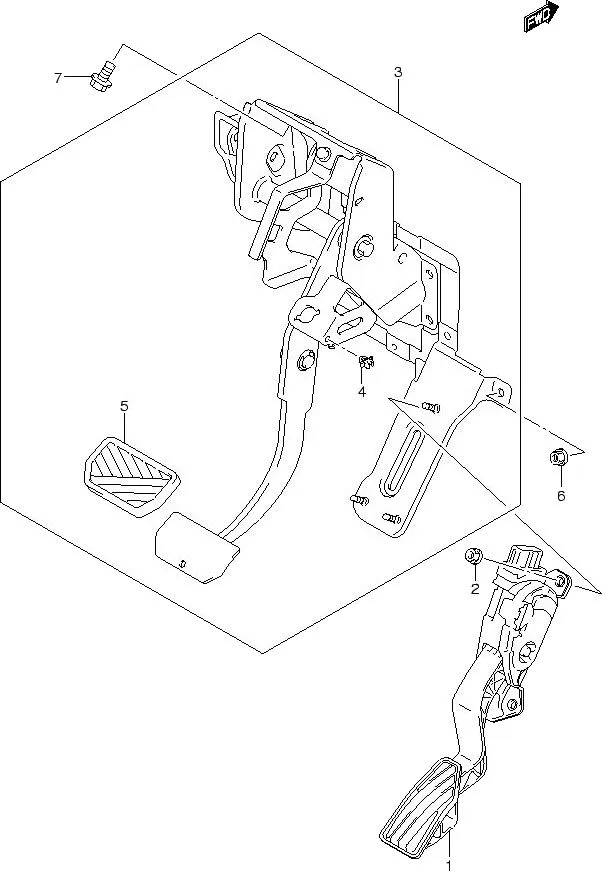

FIG.73 PEDAL/PEDAL BRACKET (AT)

FIG.73 PEDAL/PEDAL BRACKET (AT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400-79J41-000
SUB: 49400-79J40-000		 PEDAL ASSY, ACCELERATOR 1 Rp2.926.500
2 09159-06076-000 NUT 3 Rp19.500
3 49600-80J12-000
SUB: 49600-80J10-000		 PEDAL ASSY, BRAKE 1 Rp2.346.500
4 75411-76G00-000 •CLAMP 1 Rp31.000
5 49751M58J10-000 •PAD, PEDAL 1 Rp7.500
6 09159-08127-000 NUT 3 Rp11.000
7 01551-0816C-000 BOLT 2 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
