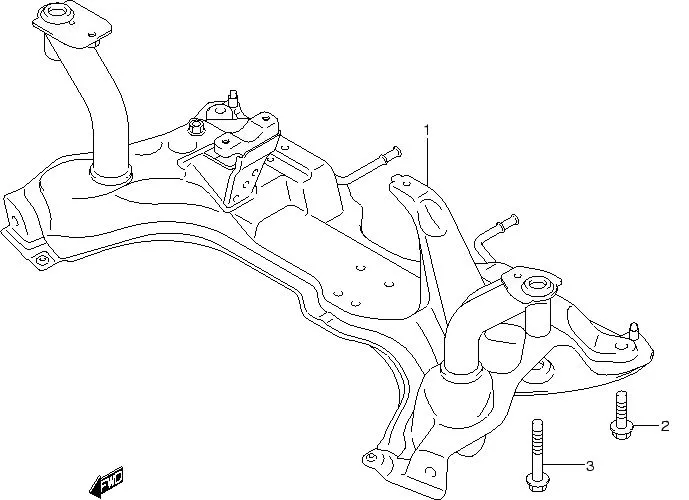

FIG.66 FRONT SUSPENSION FRAME

FIG.66 FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 45810-80J11-000
SUB: 45810-80J00-000		 FRAME, FRONT SUSPENSION 1 Rp10.916.000
2 09135-14017-000
SUB: 09135-14012-000		 BOLT (14X48) 2 Rp54.500
3 09135-14018-000
SUB: 09135-14013-000		 BOLT (14X85) 2 Rp70.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
