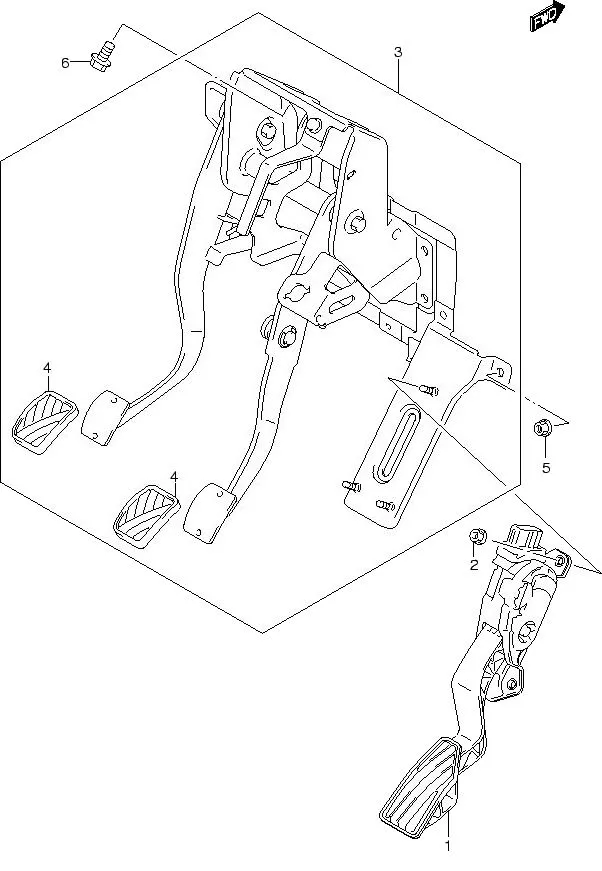

FIG.72 PEDAL/PEDAL BRACKET (MT)

FIG.72 PEDAL/PEDAL BRACKET (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 49400-79J41-000
SUB: 49400-79J40-000		 PEDAL, ACCELERATOR 1 Rp2.926.500
2 09159-06076-000 NUT 3 Rp19.500
3 49600-80J02-000
SUB: 49600-80J00-000		 PEDAL, BRAKE & CLUTCH 1 Rp3.167.500
4 49751M58J00-000 •PAD, PEDAL 2 Rp9.500
5 09159-08127-000 NUT 4 Rp11.000
6 01551-0816C-000 BOLT 2 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
