SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.61 FRONT SUSPENSIONFIG.62 FRONT STABILIZERFIG.63 FRONT DRIVE SHAFT (MT)FIG.64 FRONT DRIVE SHAFT (AT)FIG.65 FRONT WHEEL HUBFIG.66 FRONT SUSPENSION FRAMEFIG.67 REAR SUSPENSIONFIG.68 ROAD WHEEL/TIREFIG.69 STEERING WHEELFIG.70 STEERING COLUMNFIG.71 STEERING UNITFIG.72 PEDAL/PEDAL BRACKET (MT)FIG.73 PEDAL/PEDAL BRACKET (AT)FIG.74 BRAKE MASTER CYLINDERFIG.75 BRAKE PIPINGFIG.76 ANTI LOCK BRACKE SYSTEMFIG.77 FRONT WHEEL BRAKEFIG.78 REAR WHEEL BRAKEFIG.79 PARKING BRAKE

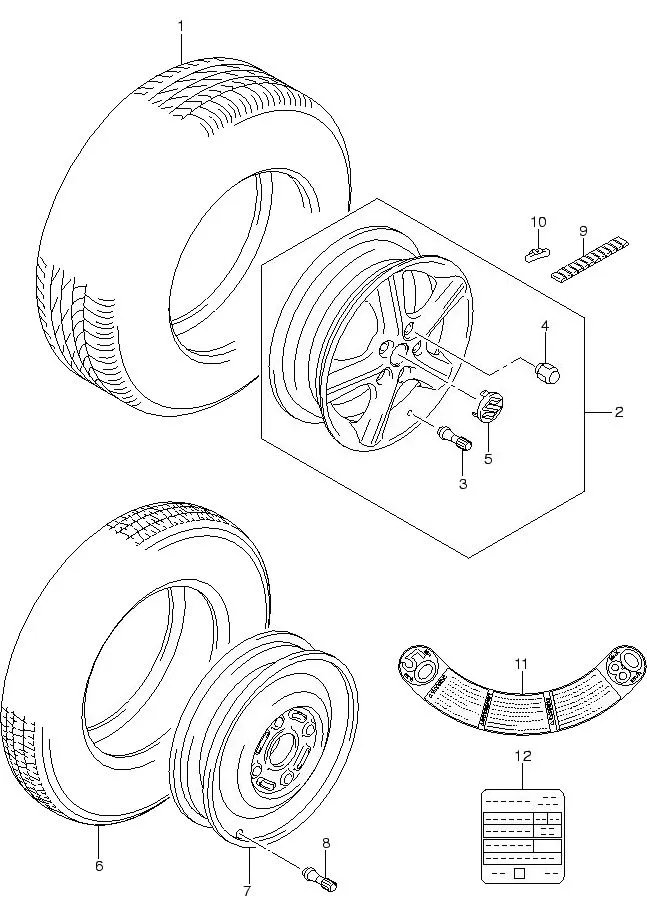

FIG.68 ROAD WHEEL/TIRE

FIG.68 ROAD WHEEL/TIRE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43110B80J00N000		 TIRE (205/60R16 92H) 4 -
2 DISCONTINUE
SUB: 43200-86890-27N		 WHEEL SET, AL (16X6J) (SILVER) 4 -
3 43130-60E10-000 •VALVE, TIRE (TR414,BS) 4 Rp57.000
4 09159-12051-000 •NUT 20 Rp46.000
5 43252-83S00-CZ2
SUB: 43252-63J10-CZ2		 •CAP, WHEEL CENTER 4 Rp184.500
6 DISCONTINUE
SUB: 43180-80J10-000		 TIRE, SPARE (T135/90R16) 1 -
7 DISCONTINUE
SUB: 43290-80J10-000		 WHEEL, SPARE (16X4T) 1 -
8 43130-60E10-000 VALVE, TIRE (TR414,BS) 1 Rp57.000
9-7 43221-59J60-000 WEIGHT, WHEEL BALANCE (35GRAM) 0 Rp52.500
9-10 43221-59J90-000 WEIGHT, WHEEL BALANCE (50GRAM) 0 Rp60.000
9-9 43221-59J80-000 WEIGHT, WHEEL BALANCE (45GRAM) 0 Rp57.000
9-8 43221-59J70-000 WEIGHT, WHEEL BALANCE (40GRAM) 0 Rp54.500
9-6 43221-59J50-000 WEIGHT, WHEEL BALANCE (30GRAM) 0 Rp49.500
9-5 43221-59J40-000 WEIGHT, WHEEL BALANCE (25GRAM) 0 Rp47.000
9-4 43221-59J30-000 WEIGHT, WHEEL BALANCE (20GRAM) 0 Rp44.000
9-3 43221-59J20-000 WEIGHT, WHEEL BALANCE (15GRAM) 0 Rp42.000
9-2 43221-59J10-000 WEIGHT, WHEEL BALANCE (10GRAM) 0 Rp40.000
9-1 43221-59J00-000 WEIGHT, WHEEL BALANCE (5GRAM) 0 Rp32.000
10-1 43221-73H10-000 WEIGHT, WHEEL BALANCE (5GRAM) 0 Rp33.000
10-2 DISCONTINUE
SUB: 43222-73H10-000		 WEIGHT, WHEEL BALANCE (10GRAM) 0 -
10-3 DISCONTINUE
SUB: 43223-73H10-000		 WEIGHT, WHEEL BALANCE (15GRAM) 0 -
10-4 DISCONTINUE
SUB: 43224-73H10-000		 WEIGHT, WHEEL BALANCE (20GRAM) 0 -
10-5 DISCONTINUE
SUB: 43225-73H10-000		 WEIGHT, WHEEL BALANCE (25GRAM) 0 -
10-6 DISCONTINUE
SUB: 43226-73H10-000		 WEIGHT, WHEEL BALANCE (30GRAM) 0 -
10-7 DISCONTINUE
SUB: 43227-73H10-000		 WEIGHT, WHEEL BALANCE (35GRAM) 0 -
10-8 DISCONTINUE
SUB: 43228-73H10-000		 WEIGHT, WHEEL BALANCE (40GRAM) 0 -
10-9 DISCONTINUE
SUB: 43231-54G10-000		 WEIGHT, WHEEL BALANCE (45GRAM) 0 -
11 DISCONTINUE
SUB: 79167B60B12N000		 PLACARD, SPARE TIRE 1 -
12 DISCONTINUE
SUB: 79161-80JM0-000		 PLACARD, TIRE INFORMATION 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
