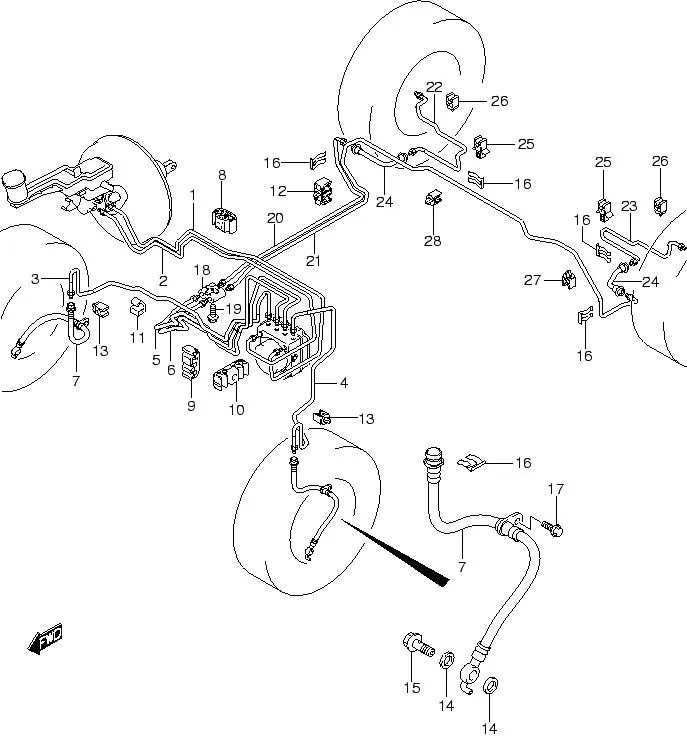

FIG.75 BRAKE PIPING

FIG.75 BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410B80J10N000		 PIPE, MA PRI TO UNIT 1 -
2 DISCONTINUE
SUB: 51420B80J10N000		 PIPE, MA SEC TO UNIT 1 -
3 DISCONTINUE
SUB: 51430-80J11-000		 PIPE, UNIT TO FR BK HOSE RH 1 -
4 DISCONTINUE
SUB: 51440B80J10N000		 PIPE, UNIT TO FR BK HOSE LH 1 -
5 DISCONTINUE
SUB: 51450B80J10N000		 PIPE, UNIT TO JOINT RH 1 -
6 DISCONTINUE
SUB: 51460B80J10N000		 PIPE, UNIT TO JOINT LH 1 -
7 DISCONTINUE
SUB: 51550B80J00N000		 HOSE, FR BRAKE FLEXIBLE 2 -
8 51751-60B00-000 CLAMP, BRAKE PIPE DASH 2 Rp32.500
9 51751-77E00-000 CLAMP, BRAKE PIPE DASH 1 Rp34.500
10 51751-82CB0-000 CLAMP, BRAKE PIPE 4 1 Rp36.000
11 51752-77M00-000
SUB: 51752-70B00-000		 CLAMP, BRAKE PIPE DASH 1 Rp5.500
12 51761-77M30-000
SUB: 51761M76G00-000		 CLAMP, BRAKE PIPE FLOOR 1 Rp6.500
13 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE FR SIDE 2 Rp6.500
14 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
15 09360-10026-000 UNION 2 Rp26.000
16 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
17 01551-0816C-000 BOLT 2 Rp17.500
18 DISCONTINUE
SUB: 51630B82040N000		 JOINT, BRAKE 4 WAY 1 -
19 02162-0625A-000 SCREW 1 Rp3.500
20 DISCONTINUE
SUB: 51470B80J00N000		 PIPE, JOINT TO RR BK HOSE RH 1 -
21 DISCONTINUE
SUB: 51480B80J00N000		 PIPE, JOINT TO RR BK HOSE LH 1 -
22 DISCONTINUE
SUB: 51510-80J00-000		 PIPE, RR BK HOSE TO WHL CYL RH 1 -
23 DISCONTINUE
SUB: 51520-80J00-000		 PIPE, RR BK HOSE TO WHL CYL LH 1 -
24 DISCONTINUE
SUB: 51570B80J00N000		 HOSE, RR BRAKE FLEXIBLE 2 -
25 DISCONTINUE
SUB: 51761-79J10-000		 CLAMP, BRAKE PIPE AXLE NO.1 2 -
26 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE AXLE NO.2 2 Rp6.500
27 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE RR SIDE 1 Rp6.500
28 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE RR FLR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
