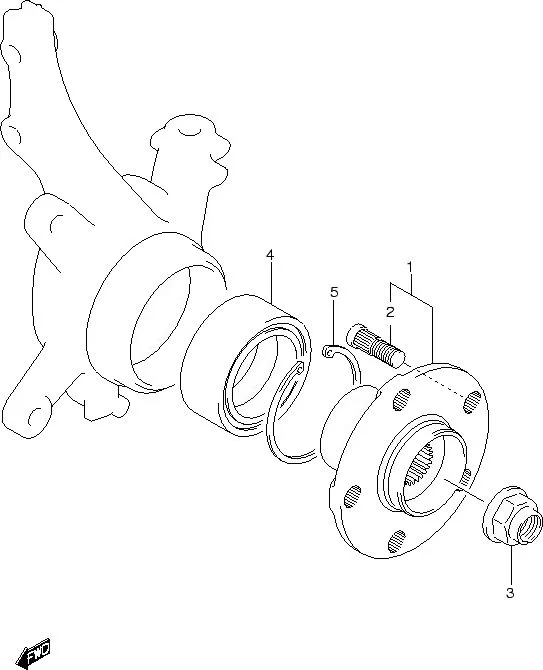

FIG.65 FRONT WHEEL HUB

FIG.65 FRONT WHEEL HUB
No No. Part Description Qty Price Per Pcs Remarks
1 43420-80801-000
SUB: 43420-80800-000		 HUB SET, FRONT WHEEL 2 Rp2.168.000
2 09119-12012-000 •BOLT 10 Rp14.500
3 43459-65J00-000 NUT, FRONT AXLE 2 Rp75.500
4 43440-80J00-000 BEARING, FRONT WHEEL 2 Rp1.169.500
5 09381-84004-000 RING, SNAP 2 Rp53.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
