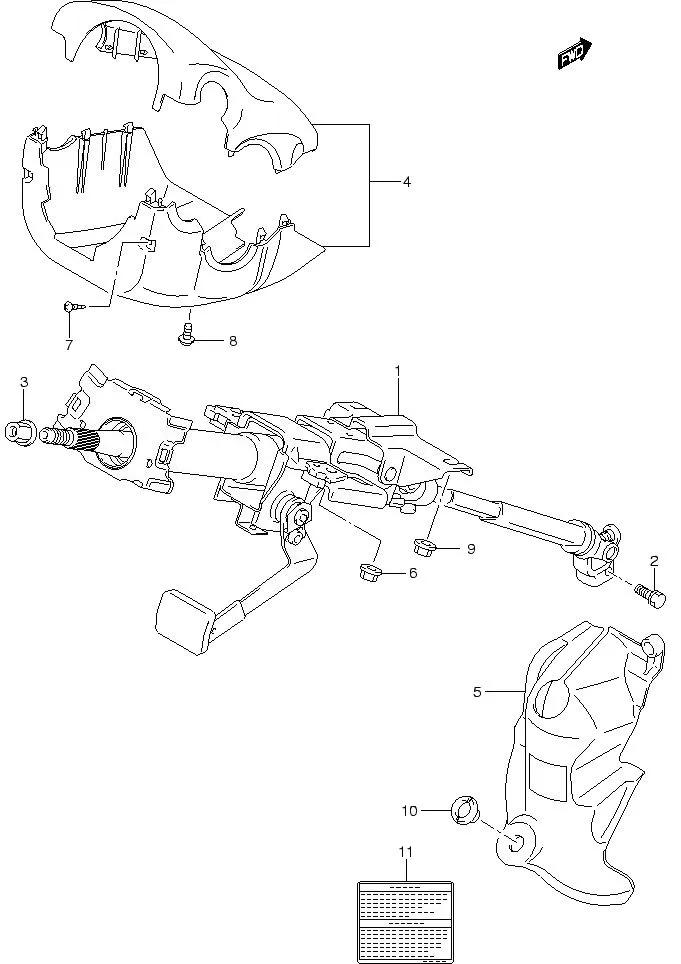

FIG.70 STEERING COLUMN

FIG.70 STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200-79J10-000 COLUMN ASSY, COLPS STEERING 1 Rp5.898.000
2 09117-08053-000 BOLT (8X30) 1 Rp27.000
3 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
4 48400-62J00-P4Z COVER ASSY, STEERING COLUMN (GRAY) 1 Rp431.000
5 DISCONTINUE
SUB: 48481-80J00-000		 COVER, STEERING JOINT 1 -
6 09159-08127-000
SUB: 09159-08135-000		 NUT 2 Rp11.000
7 03211M0512A-000 SCREW 2 Rp4.500
8 09136M05030-000 SCREW (5X12) 1 Rp4.500
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
10 09148-05037-000 CLIP 1 Rp18.000
11 DISCONTINUE
SUB: 79172B80G01N000		 LABEL, STEERING JOINT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
