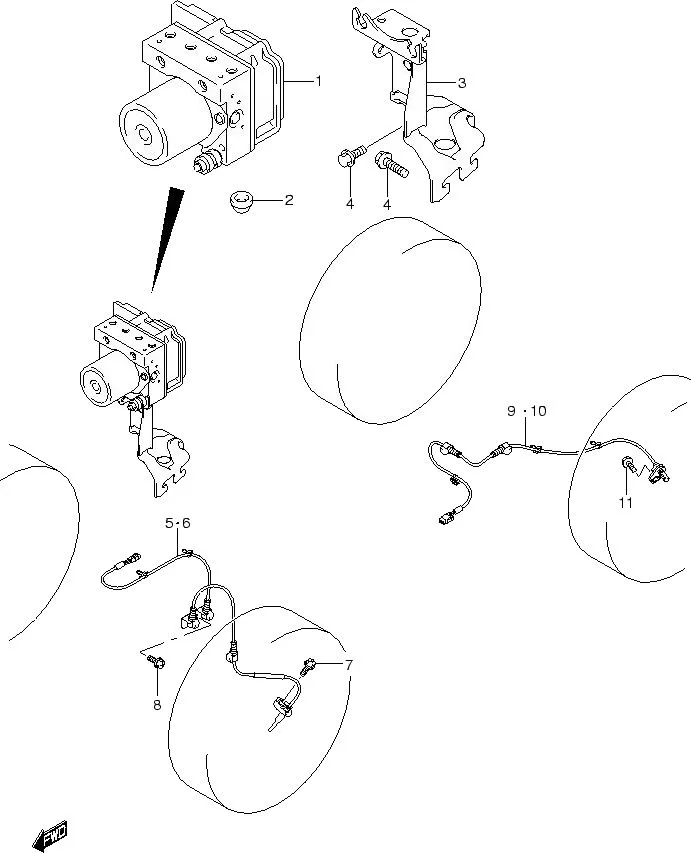

FIG.76 ANTI LOCK BRACKE SYSTEM

FIG.76 ANTI LOCK BRACKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56110-80J82-000
SUB: 56110-80J80-000		 ACTUATOR ASSY, ABS 1 Rp18.630.000
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3 DISCONTINUE
SUB: 56161-80J10-000		 BRACKET, ACTUATOR 1 -
4 01551-0812A-000 BOLT 3 Rp18.500
5 56210-79J10-000
SUB: 56210-79J00-000		 SENSOR, FR WHEEL RH 1 Rp1.291.500
6 56220-79J10-000
SUB: 56220-79J00-000		 SENSOR, FR WHEEL LH 1 Rp1.473.500
7 02162-0616A-000
SUB: 02162-0616C-000		 SCREW 2 Rp3.000
8 02162-0612A-000 SCREW 2 Rp11.000
9 56310-79J01-000
SUB: 56310-79J00-000		 SENSOR, RR WHEEL RH 1 Rp1.579.500
10 56320-79J01-000
SUB: 56320-79J00-000		 SENSOR, RR WHEEL LH 1 Rp2.017.000
11 02162-0612A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
