Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

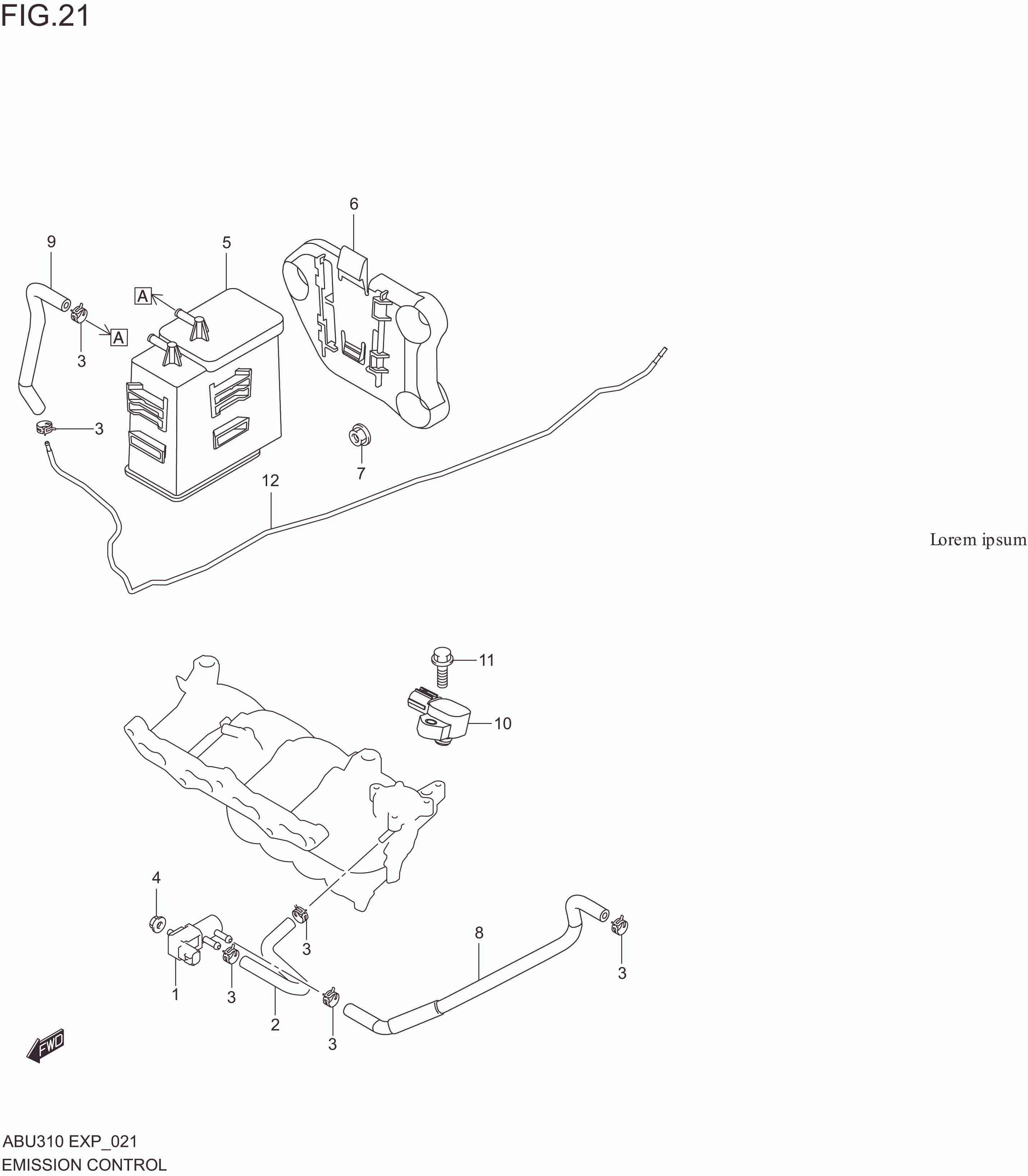

EMISSION CONTROL

EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE,CANISTER PURGE 1 Rp322.500
2 18564M69R00-000 HOSE,PURGE(VSV TO INMF) 1 Rp40.000
3 09401M11432-000 CLIP,PURGE HOSE 6 Rp6.000
4 08316-1006A-000 NUT 1 Rp2.000
5 18560M62S00-000 CANISTER 1 Rp228.000
6 18570M62S00-000 BRACKET, CANISTER 1 Rp35.000
7 09159-06076-000 NUT,CANISTER BRKT 3 Rp19.500
8 18562M62S00-000 HOSE,PURGE(CSTR TO VSV) 1 Rp47.500
9 18561M62S00-000 HOSE,CANISTER INLET 1 Rp32.500
10 18590M72R00-000 SENSOR ASSY,PRESSURE 1 Rp310.000
11 09132-05066-000 SCREW,MAP SENSOR 1 Rp19.500
12 18351M62S00-000 PIPE,FUEL EVAP 1 Rp178.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
