Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

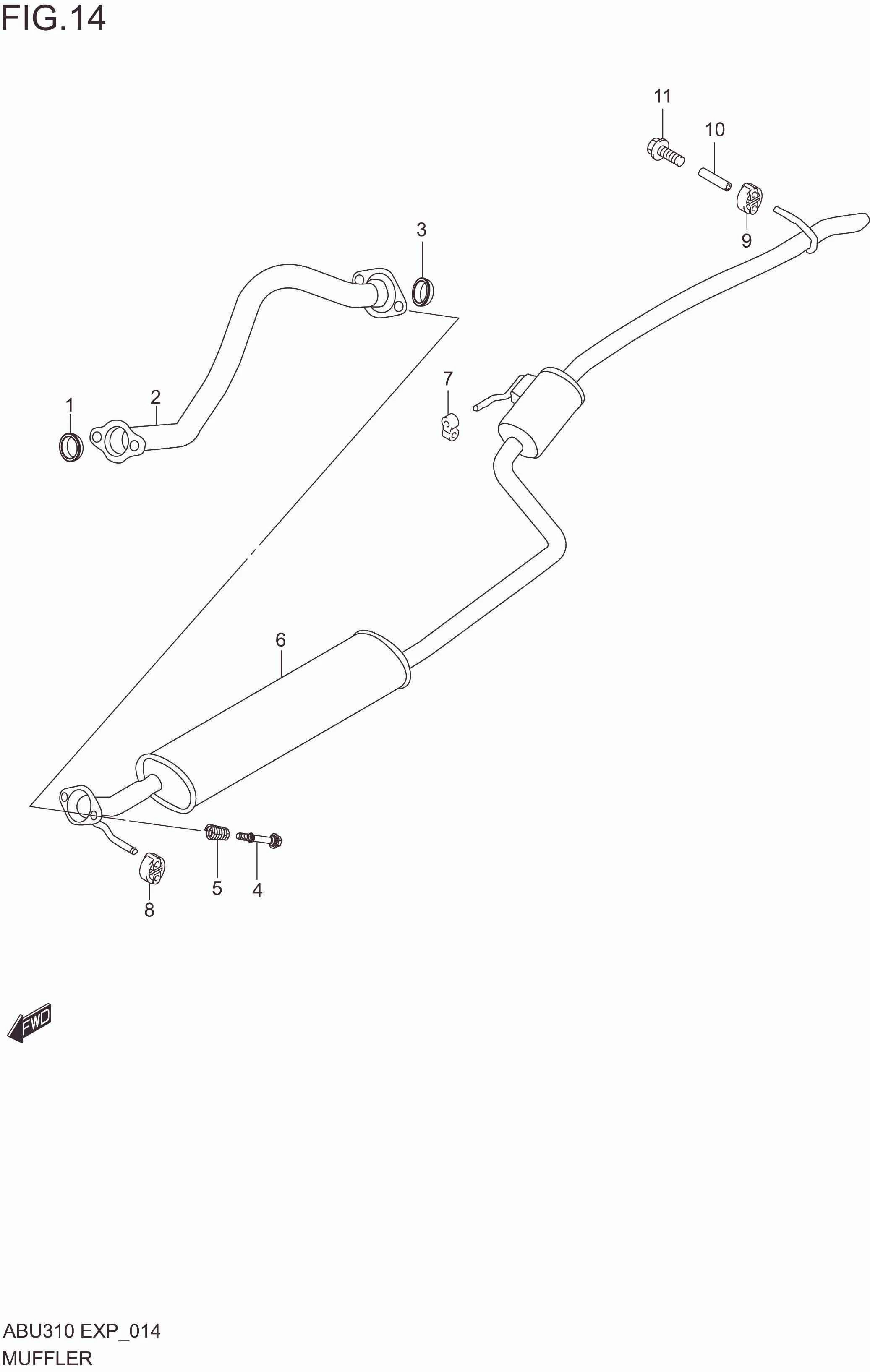

MUFFLER

MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183M69R00-000 RING,SEAL EXH PIPE 1 Rp196.000
2 14190M62S00-000 PIPE ,EXH 1 Rp403.000
3 14183M78L00-000
SUB: 14183M74L00-000		 RING,SEAL EXH PIPE 1 Rp207.000
4 09119-10073-000 BOLT,EXH PIPE 4 Rp75.000
5 14492M72F00-000 SPRING,EXH PIPE 4 Rp50.500
6 14300M62S00-000 MUFFLER 1 Rp2.183.000
7 14281M60M10-000 MOUNTING,MUFFLER 1 Rp47.500
8 14281M65M10-000 MOUNTING,MUFFLER 1 Rp70.000
9 14281M78L00-000 MOUNTING,MUFFLER 1 Rp43.000
10 09180M08095-000
SUB: 09180-08095-000		 SPACER,MTG 1 Rp7.000
11 01550-0835A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
