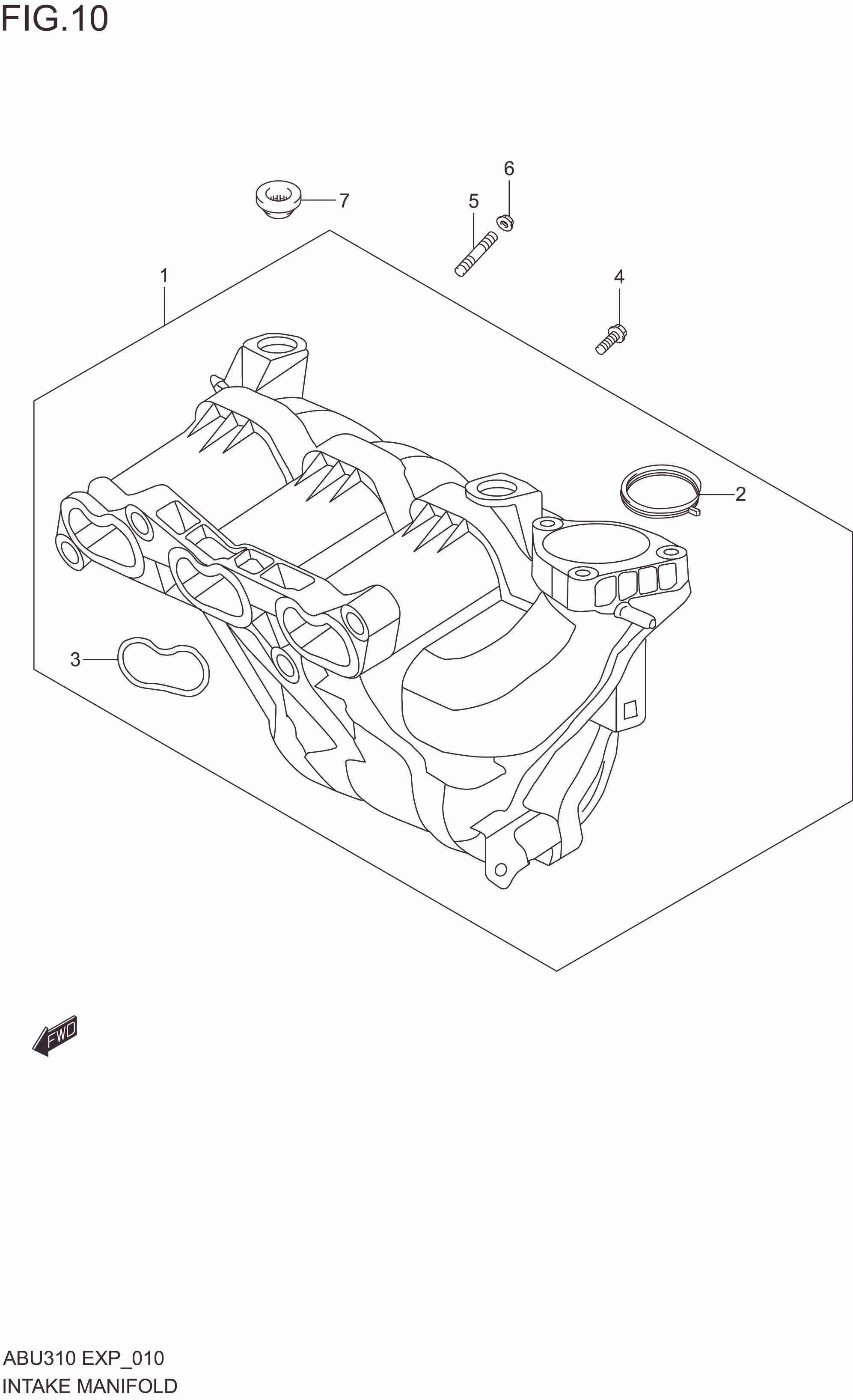

INTAKE MANIFOLD

INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110M62S00-000 MANIFOLD COMP,INTK 1 Rp634.000
2 13421M62S00-000 .GASKET,THROTTLE BODY 1 Rp20.500
3 13118M62S00-000 .GASKET,INTAKE MANIFOLD 1 Rp16.000
4 01550-0835A-000 BOLT 2 Rp3.500
5 01421-0835A-000 STUD BOLT 2 Rp13.500
6 08316-1008A-000 NUT 2 Rp3.500
7 13723M84MB0-000 GROMMET,AIR CLNR 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
