Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

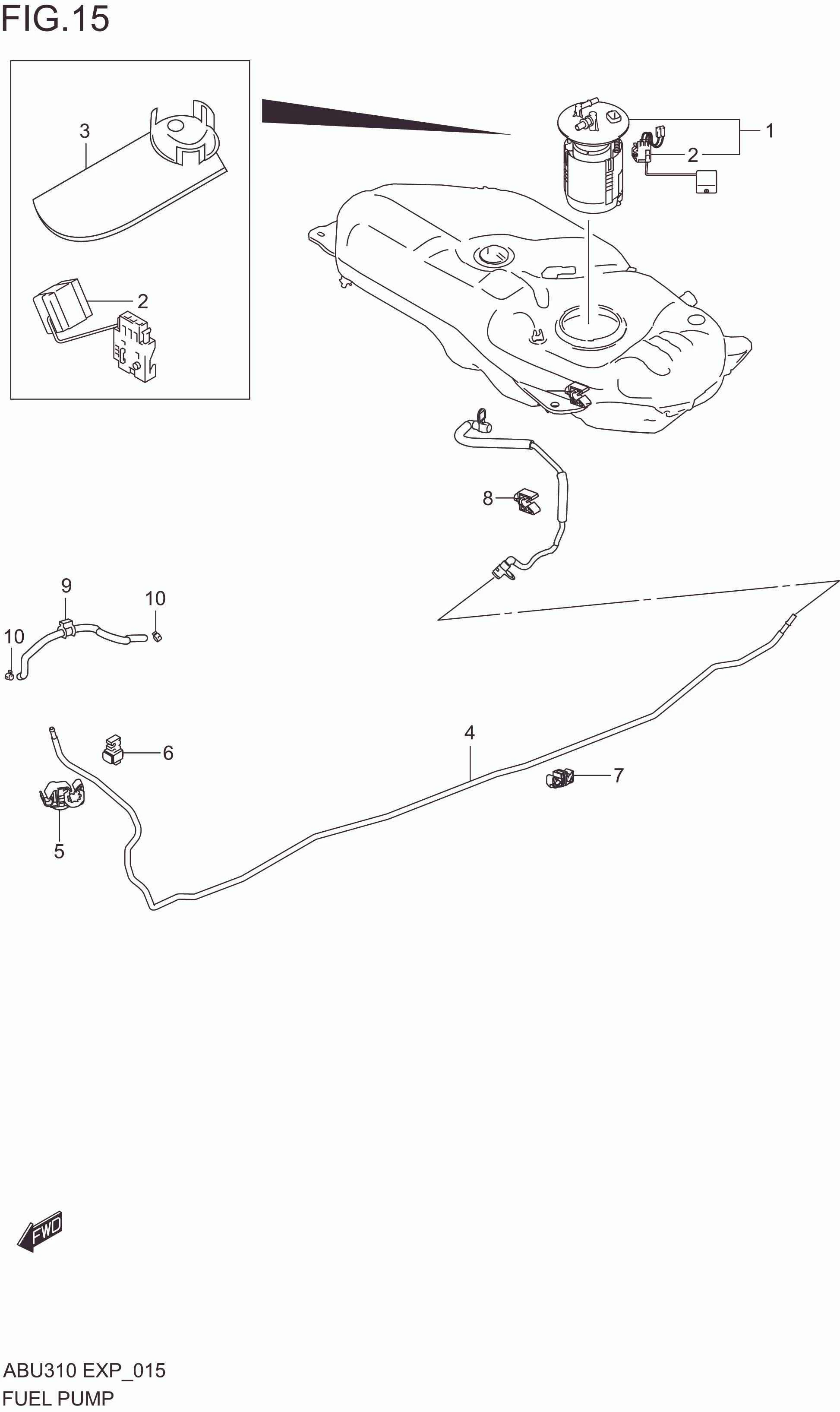

FUEL PUMP

FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100M62S00-000 PUMP ASSY,FUEL 1 Rp1.773.500
2 34810M62S00-000 .GAUGE, FUEL LEVEL 1 Rp516.500
3 15140M62S00-000 .FILTER, FUEL 1 Rp97.500
4 15810M62S00-000 PIPE, FUEL FEED(RH) 1 Rp408.500
5 15882M67P00-000 CLAMP,FUEL PIPE 1 Rp13.500
6 15891M62S00-000 CLAMP,FUEL PIPE 1 Rp43.000
7 15893M62S00-000 CLAMP,FUEL PIPE 4 Rp8.500
8 09403M08331-000
SUB: 09403-08331-000		 CLAMP,FUEL PIPE 1 Rp6.500
9 15815M62S00-000 HOSE, FUEL(PIPE TO ENG) 1 Rp140.500
10 09401M11001-000 CLIP,FUEL HOSE 2 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
