Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

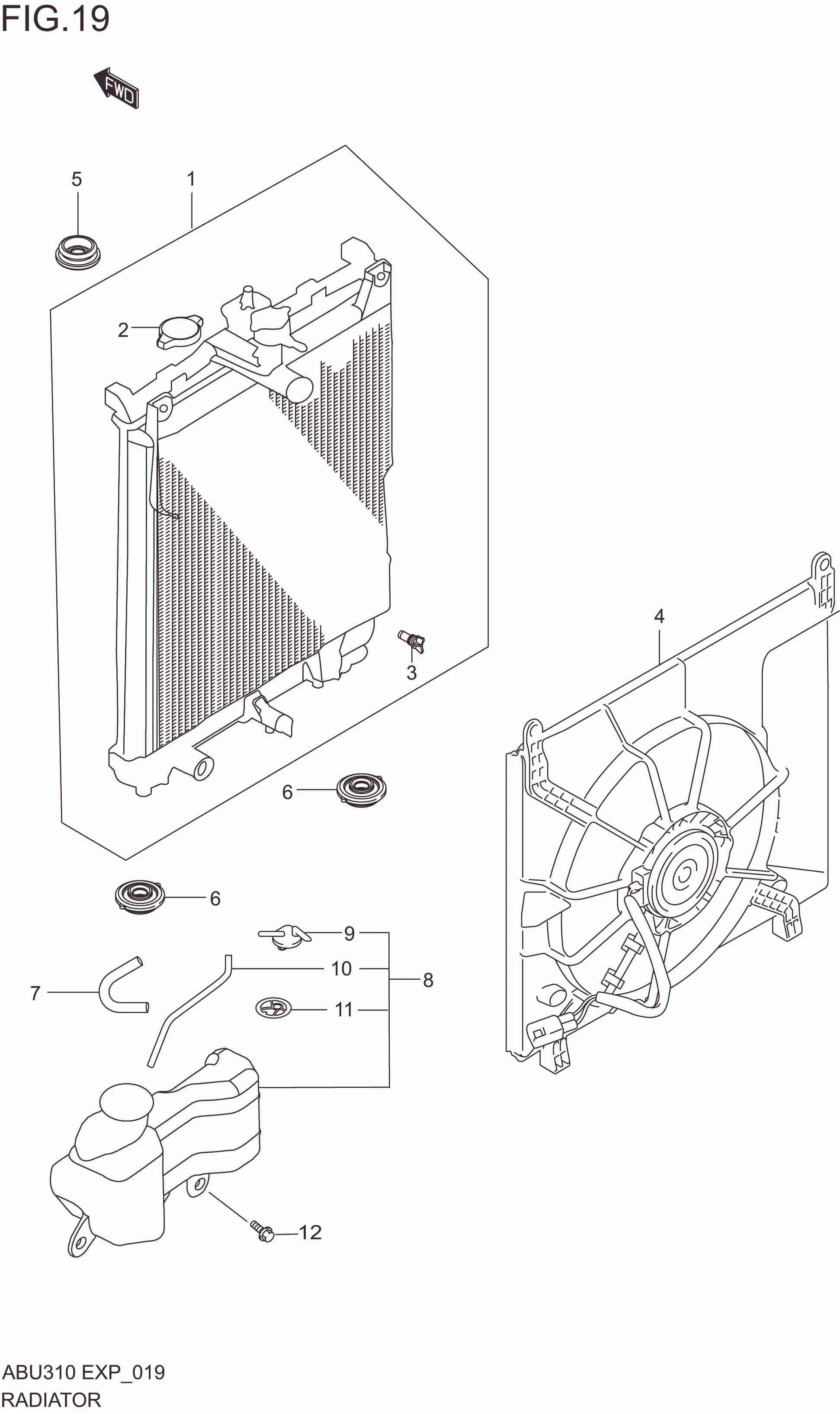

RADIATOR

RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17700M62S00-000 RADIATOR ASSY 1 Rp810.000
2 17920M77P00-000 .CAP,RADIATOR 1 Rp103.500
3 17751-82000-000
SUB: 17751-63210-000		 .PLUG,DRAIN 1 Rp21.000
4 17100M62S00-000 FAN ASSY 1 Rp1.394.500
5 17879M62S00-000 MOUNT,RADIATOR SUPPORT UPPER 1 Rp7.000
6 17878M68P00-000 MOUNT,RADIATOR SUPPORT LOWER 2 Rp17.000
7 17939M62S00-000 HOSE,RDTR TO RSV TANK 1 Rp13.000
8 17930M62S00-000 TANK ASSY,WATER RESERVE 1 Rp105.500
9 17932M68K00-000 .CAP,WTR RSVR TANK 1 Rp11.000
10 09352M70111-260 .HOSE,WTR RSVR TANK CAP 1 Rp16.000
11 17933M53M00-000 .RUBBER,WATER RSV TANK CAP 1 Rp8.000
12 01550-0612A-000 BOLT,WTR RSVR TANK 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
