Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

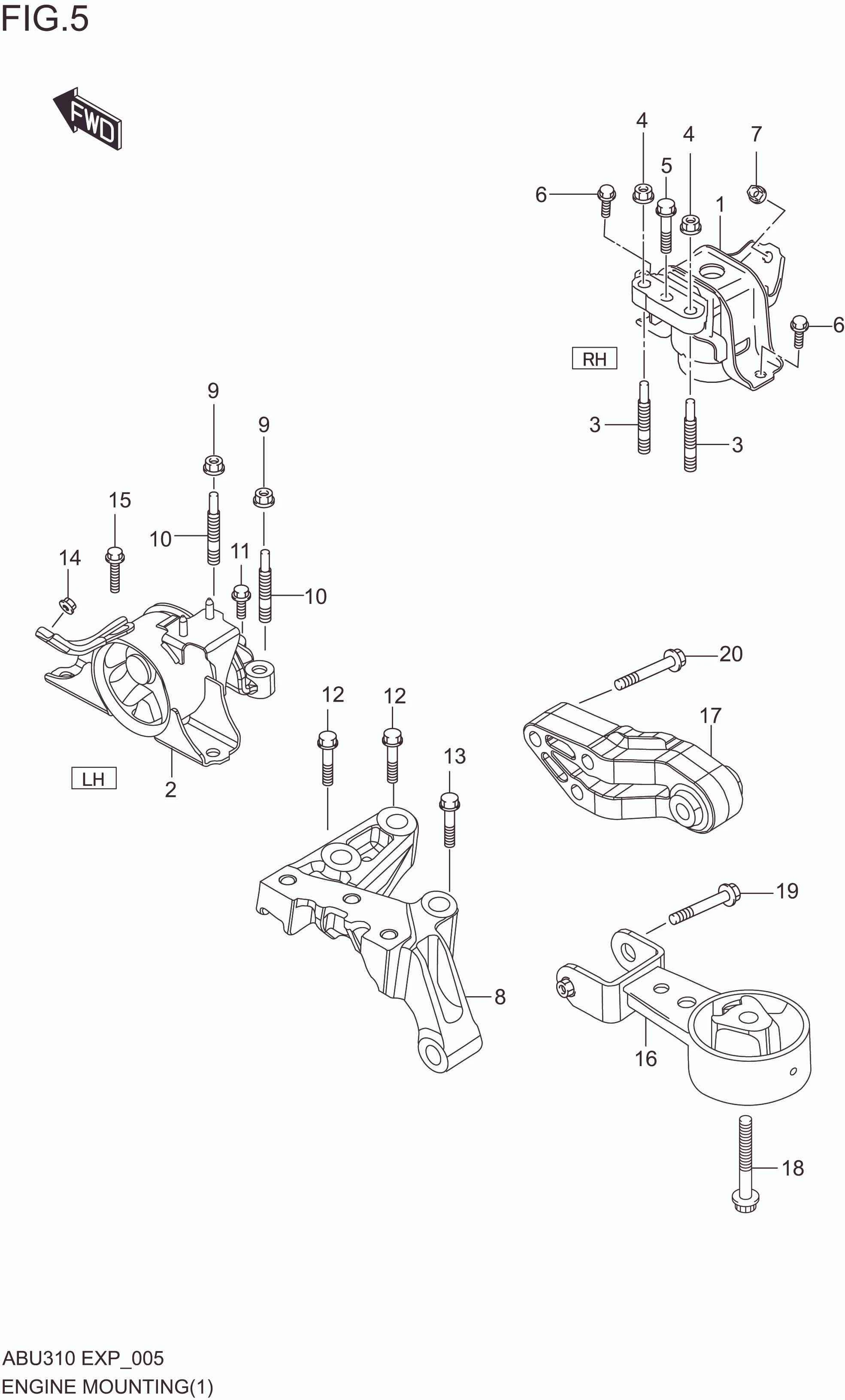

ENGINE MOUNTING (5MT)

ENGINE MOUNTING (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M62S00-000 MOUNTING,ENG RH 1 Rp689.500
2 11620M62S02-000 MOUNTING,ENG LH 1 Rp636.500
3 11644-75J01-000 STUD BOLT 2 Rp29.500
4 09159-10116-000 NUT 2 Rp18.000
5 09103M10729-000 BOLT 1 Rp13.000
6 01551-1025A-000 BOLT 2 Rp29.000
7 08316-1010A-000 NUT 1 Rp3.500
8 11651M62S00-000 BRACKET,ENG MTG LH 1 Rp301.000
9 08316-1010A-000 NUT 2 Rp3.500
10 11653-79J50-000 BOLT,ENG MTG LH STUD 2 Rp40.000
11 01550-1040A-000 BOLT 1 Rp7.000
12 09103M10463-000 BOLT 3 Rp10.500
13 01550M1065A-000
SUB: 01550-1065A-000		 BOLT 1 Rp16.500
14 08316-1010A-000 NUT 1 Rp3.500
15 01551-1025A-000 BOLT 2 Rp29.000
16 11910M62S00-000 ROD COMP,ENG RR TRQ 1 Rp338.500
17 11940M62S00-000 BRACKET ,ENG RR TRQ ROD 1 Rp303.000
18 09113M12003-000 BOLT 1 Rp34.000
19 09113M12003-000 BOLT 1 Rp34.000
20 01550-1055A-000 BOLT 3 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
