Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

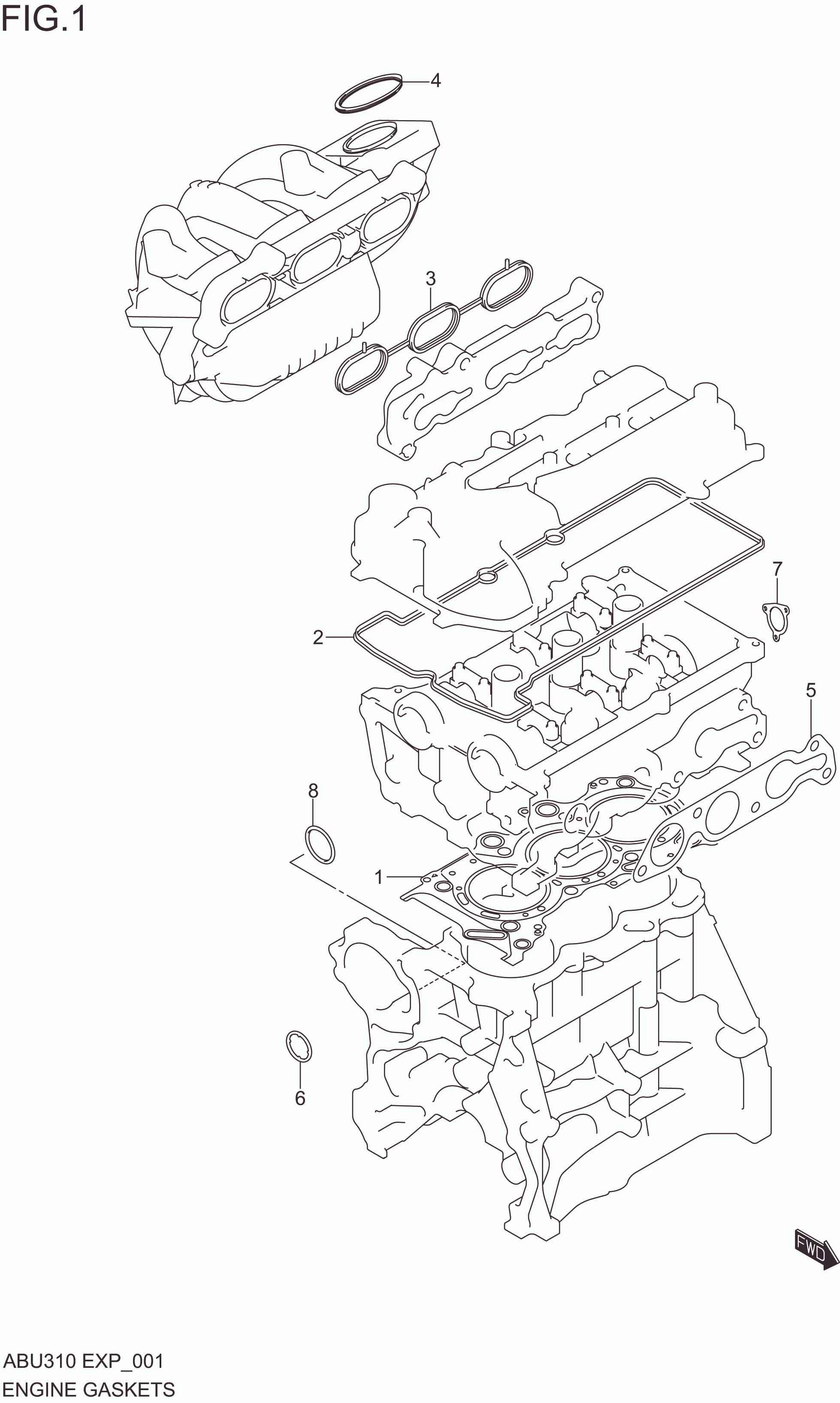

ENGINE GASKETS

ENGINE GASKETS
No No. Part Description Qty Price Per Pcs Remarks
1 11141-51K01-000
SUB: 11141M68K01-000		 GASKET, CYLINDER HEAD 1 Rp375.000
2 11189M62S00-000 GASKET, CYLINDER HEAD COVER 1 Rp90.500
3 13118M62S00-000 GASKET, INTAKE MANIFOLD 1 Rp16.000
4 13421M62S00-000 GASKET, THROTTLE BODY 1 Rp20.500
5 14140M68K10-000 GASKET, EXH MANF 1 Rp70.500
6 16117M68K00-000 O RING, OIL PUMP CASE 1 Rp7.000
7 17699M68K00-000 GASKET, WATER THERMOSTAT 1 Rp13.000
8 09280M28L01-000 O RING, WATER INLET PIPE 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
