Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

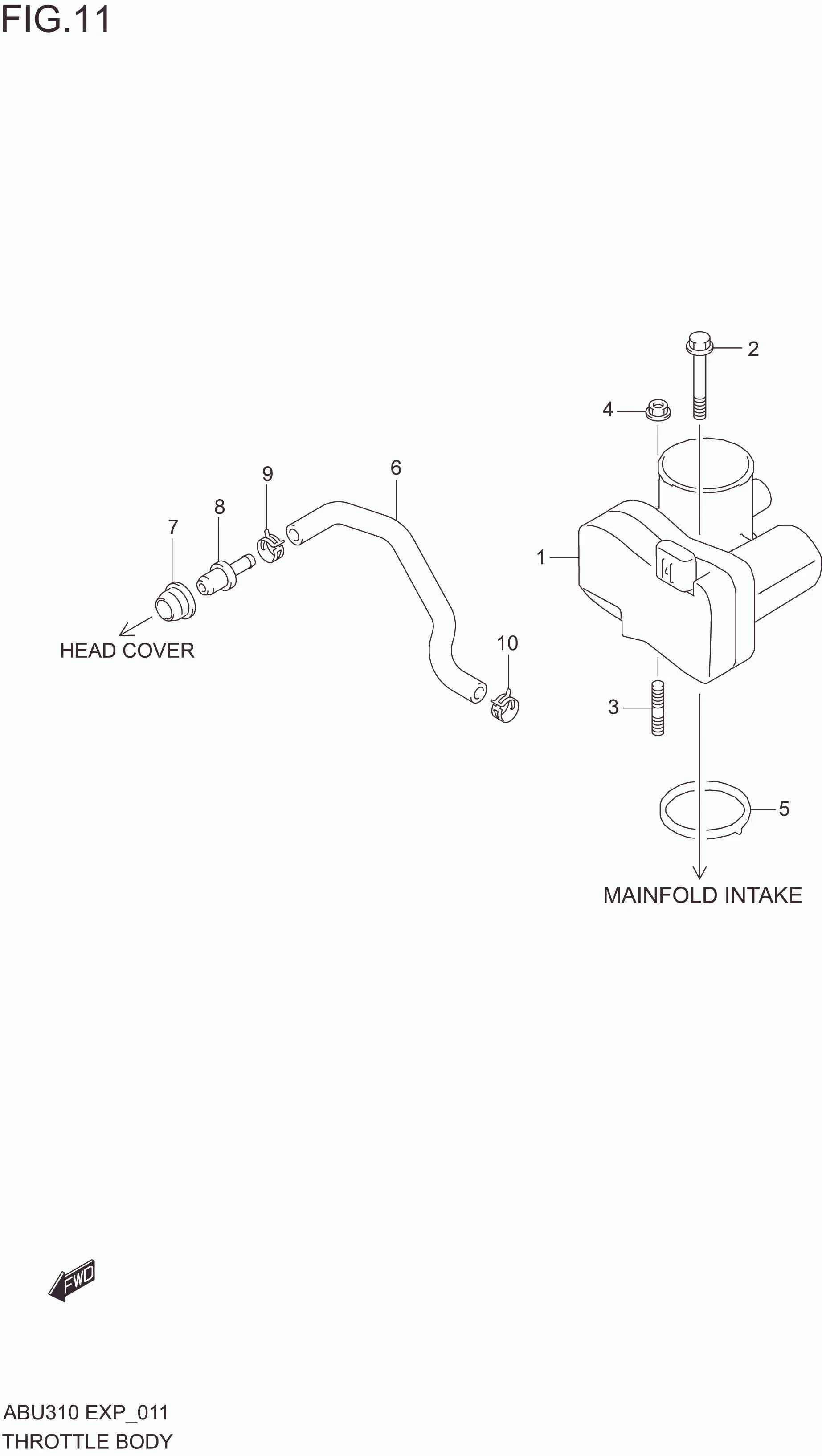

THROTTLE BODY

THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400M69R00-000 BODY ASSY,THROTTLE 1 Rp2.033.000
2 01550-0645A-000 BOLT 1 Rp13.000
3 01421-0620A-000 BOLT 2 Rp3.500
4 08316-1006A-000 NUT 2 Rp2.000
5 13421M62S00-000 GASKET,THROTTLE BODY 1 Rp20.500
6 11193M69R00-000 HOSE,PCV 1 Rp32.500
7 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
8 18118-73K00-000 VALVE,PCV 1 Rp179.000
9 09401M13L04-000 CLIP 1 Rp6.000
10 09401M18L07-000 CLIP 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
