Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

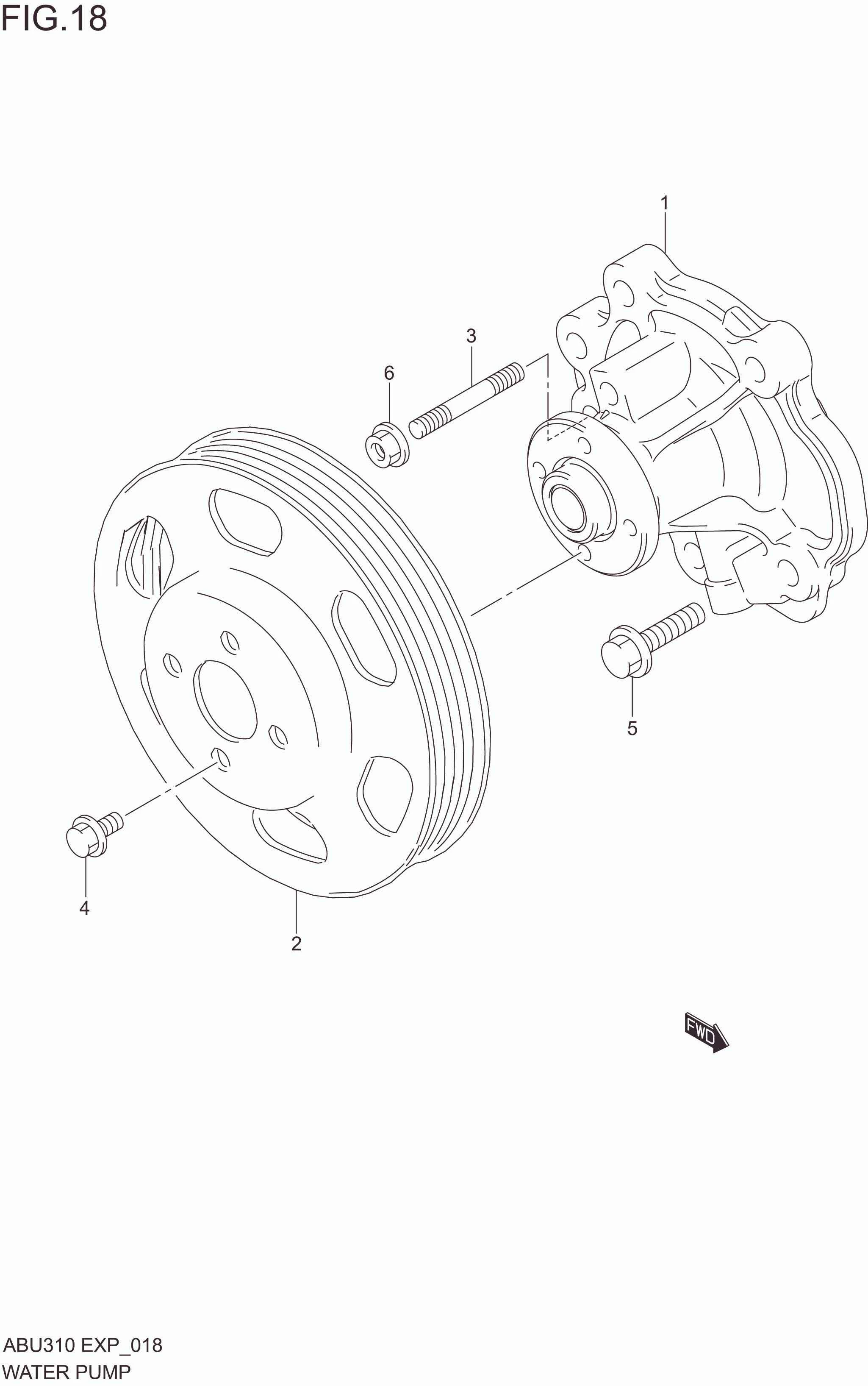

WATER PUMP

WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400M67L24-000
SUB: 17400M67L21-000		 PUMP ASSY,WATER 1 Rp741.000
2 17511M68PA0-000 PULLEY,WATER PUMP 1 Rp135.500
3 01421-0835A-000 STUD BOLT 2 Rp13.500
4 17512-61P00-000 BOLT,WATER PUMP PULLEY 4 Rp5.500
5 01550-0830A-000 BOLT 4 Rp4.000
6 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
