Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

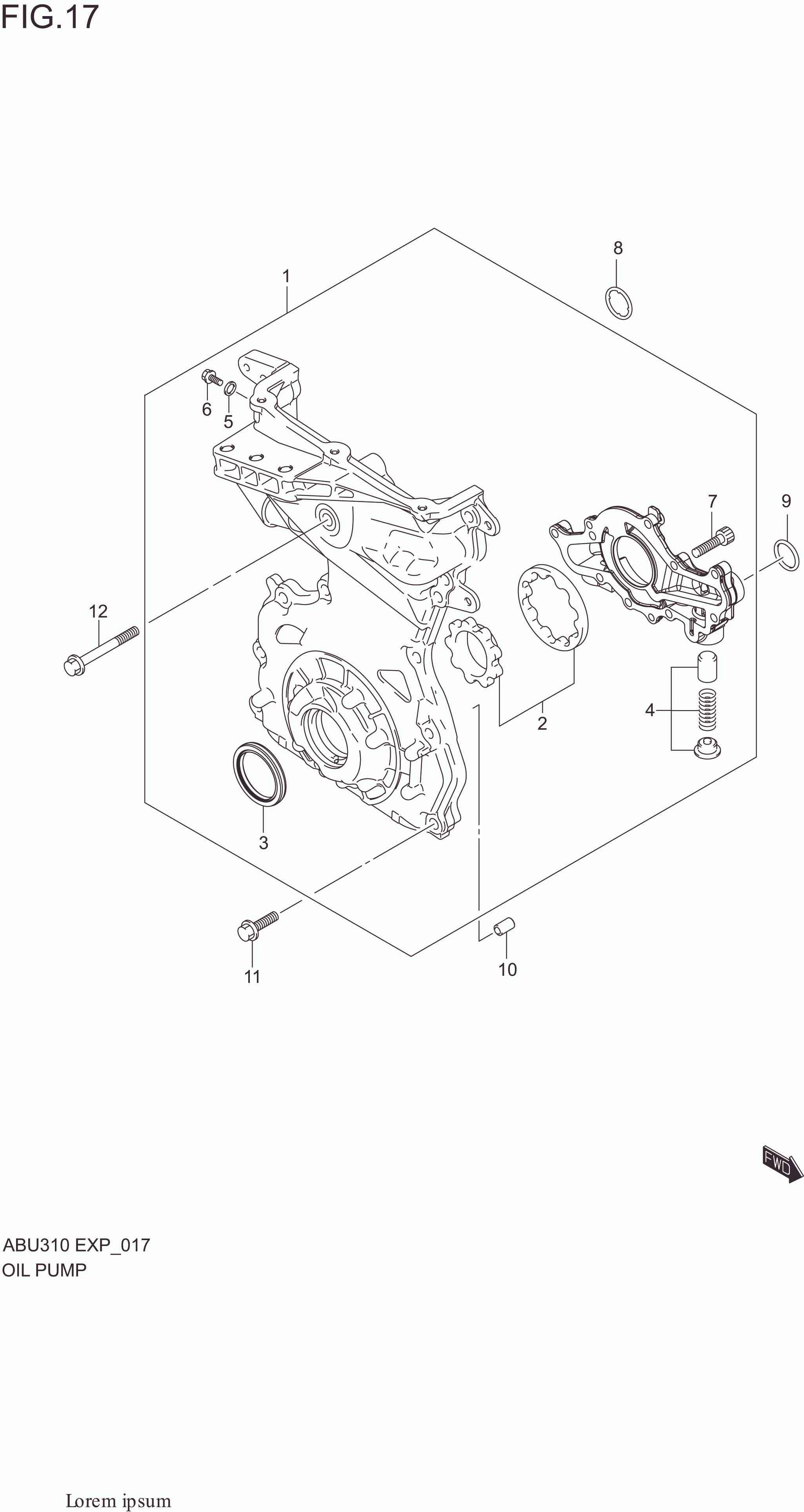

OIL PUMP

OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100M62S00-000 PUMP ASSY,OIL 1 Rp1.925.000
2 16130M83P00-000 .ROTOR SET,OIL PUMP 1 Rp275.500
3 16141M68PA0-000 .SEAL,CRANKSHAFT FRONT OIL 1 Rp64.500
4 16150M68K01-000 .VALVE SET,OIL PUMP RELIEF 1 Rp48.000
5 09168-08016-000 .GASKET,OIL PUMP CASE 1 Rp25.000
6 01550-0816A-000 .BOLT,OIL PUMP CASE 1 Rp6.000
7 07130-0625A-000 .BOLT,OIL PUMP PLATE 8 Rp3.500
8 16117M68K00-000 O-RING 1 Rp7.000
9 16119M68K00-000 O-RING 1 Rp7.000
10 09206-06005-000 PIN,OIL PUMP CASE DOWEL 2 Rp14.500
11 01550-0830A-000 BOLT,OIL PUMP 13 Rp4.000
12 01550-0885A-000 BOLT,OIL PUMP NO.2 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
