Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (5AGS)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

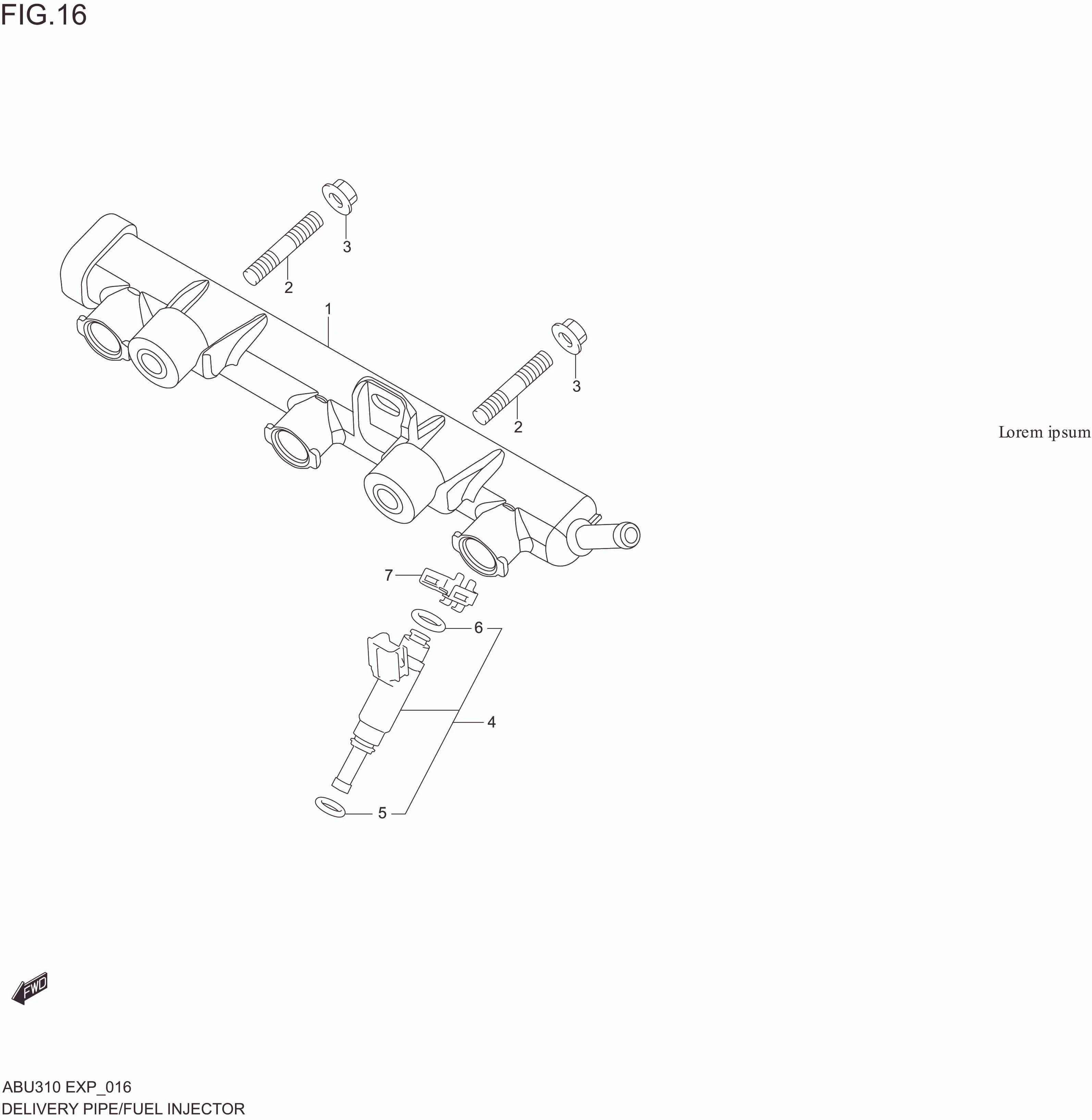

DELIVERY PIPE

DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15730M69R00-000 PIPE ,FUEL DELIVERY 1 Rp180.500
2 01421-0830A-000 STUD BOLT 2 Rp16.500
3 08316-1008A-000 NUT 2 Rp3.500
4 15710M72R00-000 INJECTOR ASSY,FUEL 3 Rp531.500
5 15716-68P01-000 .O RING 1 Rp48.000
6 15716-68P01-000 .O RING 1 Rp48.000
7 15715-82M00-000 CLIP,FUEL INJECTOR 3 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
