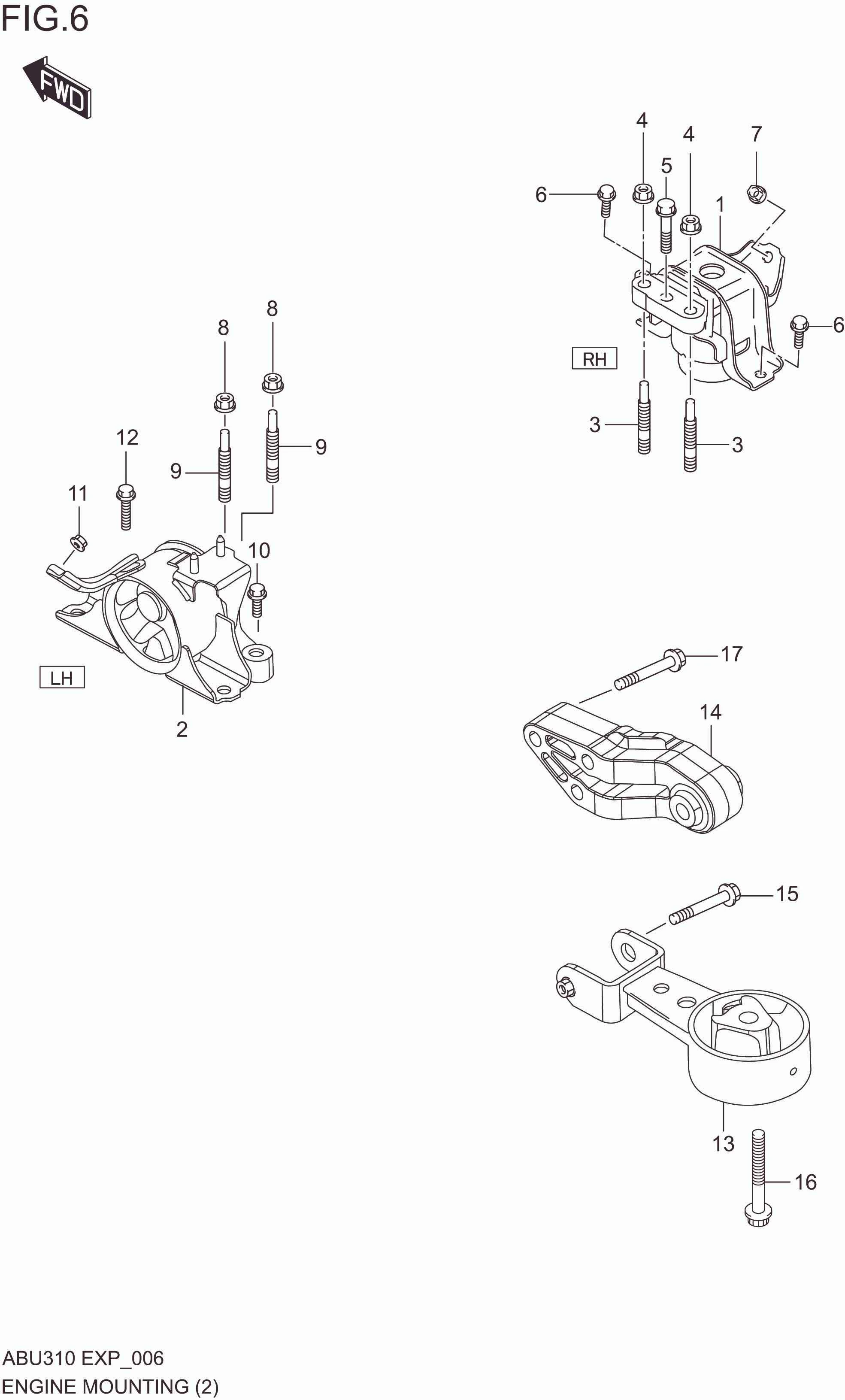

ENGINE MOUNTING (5AGS)

ENGINE MOUNTING (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M62S00-000 MOUNTING,ENG RH 1 Rp689.500
2 11620M62SA2-000 MOUNTING,ENG LH 1 Rp636.500
3 11644-75J01-000 STUD BOLT 2 Rp29.500
4 09159-10116-000 NUT 2 Rp18.000
5 09103M10729-000 BOLT 1 Rp13.000
6 01551-1025A-000 BOLT 2 Rp29.000
7 08316-1010A-000 NUT 1 Rp3.500
8 08316-1010A-000 NUT 2 Rp3.500
9 11653-79J50-000 BOLT,ENG MTG LH STUD 2 Rp40.000
10 01550-1040A-000 BOLT 1 Rp7.000
11 08316-1010A-000 NUT 1 Rp3.500
12 01551-1025A-000 BOLT 2 Rp29.000
13 11910M62S00-000 ROD COMP,ENG RR TRQ 1 Rp338.500
14 11940M62S00-000 BRACKET ,ENG RR TRQ ROD 1 Rp303.000
15 09113M12003-000 BOLT 1 Rp34.000
16 09113M12003-000 BOLT 1 Rp34.000
17 01550-1055A-000 BOLT 3 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
