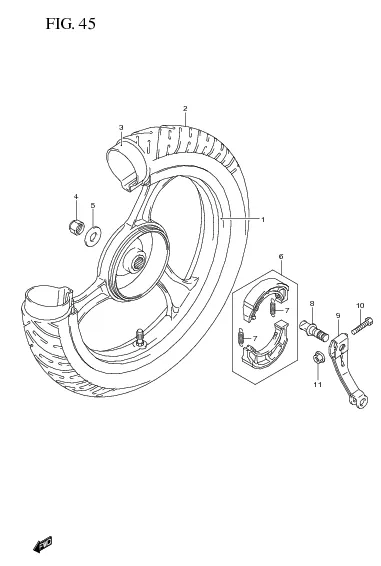

FIG. 45 REAR WHEEL

FIG. 45 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64150-09810-13L
SUB: 64150B09J00N13L		 WHEEL, REAR (14X1.60) 1 Rp822.000
2 65110-09J01-000
SUB: 65110B09J00N000		 TIRE, REAR (80/90-14M/C 46P) 1 Rp300.000
3 65200-46G10-000
SUB: 65200B46G10N000		 TUBE ASSY, WHEEL INNER 1 Rp59.500
4 09159-16020-000
SUB: 09159B16020N000		 NUT 1 Rp13.500
5 09160-16051-000
SUB: 09160B16051N000		 WASHER (16.1X36X3.8) 1 Rp27.000
6 64400-09J30-000
SUB: 64400B09J00N000		 SHOE SET, REAR BRAKE 1 Rp65.000
7 55421-20E00-000
SUB: 55421B20E00N000		 .SPRING, REAR BRAKE SHOE 2 Rp3.500
8 64440-09J00-000
SUB: 64440B09J00N000		 CAM, REAR BRAKE 1 Rp23.500
9 64451-09J00-000
SUB: 64451B09J00N000		 LEVER, REAR BRAKE CAM 1 Rp22.000
10 09100-06139-000
SUB: 09100B06139N000		 BOLT (6X31) 1 Rp4.000
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
