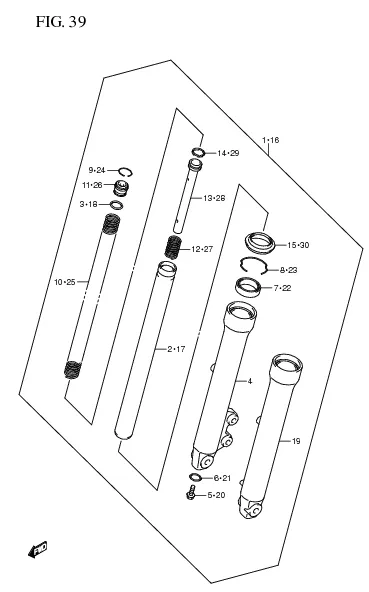

FIG. 39 FRONT FORK DAMPER

FIG. 39 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-09J10-291
SUB: 51103B09J00N291		 DAMPER ASSY, FRONT FORK RH 1 Rp448.000
2 51110-09J00-000
SUB: 51110B09J00N000		 .TUBE, INNER 1 Rp183.500
3 51117-09G00-000
SUB: 51117B09G00N000		 .O RING 1 Rp3.500
4 51131-09J00-291
SUB: 51131B09J00N291		 .TUBE, OUTER RH 1 Rp201.000
5 51147-42AA0-000
SUB: 51147B42AA0N000		 .BOLT 1 Rp8.500
6 51148-31030-000
SUB: 51148B31030N000		 .GASKET 1 Rp4.000
7 51153-09G00-000
SUB: 51153B09G00N000		 .OIL SEAL 1 Rp16.500
8 51156-09G00-000
SUB: 51156B09G00N000		 .RING, SNAP 1 Rp4.500
9 51169-09G00-000
SUB: 51169B09G00N000		 .RING, STOPPER 1 Rp4.000
10 51171-09J00-000
SUB: 51171B09J00N000		 .SPRING, FRONT 1 Rp28.500
11 51175-09G00-000
SUB: 51175B09G00N000		 .CAP 1 Rp10.500
12 51177-47E01-000
SUB: 51177B47E01N000		 .SPRING, REBOUND 1 Rp5.500
13 51194-09J00-000
SUB: 51194B09J00N000		 .CYLINDER 1 Rp29.500
14 51196-16H00-000
SUB: 51196B16H00N000		 .RING, PISTON 1 Rp7.000
15 51571-09G00-000
SUB: 51571B09G00N000		 .SEAL, DUST 1 Rp8.000
16 51104-09J10-291
SUB: 51104B09J00N291		 DAMPER ASSY, FRONT FORK LH 1 Rp448.000
17 51110-09J00-000
SUB: 51110B09J00N000		 .TUBE, INNER 1 Rp183.500
18 51117-09G00-000
SUB: 51117B09G00N000		 .O RING 1 Rp3.500
19 51141-09J00-291
SUB: 51141B09J00N291		 .TUBE, OUTER LH 1 Rp201.000
20 51147-42AA0-000
SUB: 51147B42AA0N000		 .BOLT 1 Rp8.500
21 51148-31030-000
SUB: 51148B31030N000		 .GASKET 1 Rp4.000
22 51153-09G00-000
SUB: 51153B09G00N000		 .OIL SEAL 1 Rp16.500
23 51156-09G00-000
SUB: 51156B09G00N000		 .RING, SNAP 1 Rp4.500
24 51169-09G00-000
SUB: 51169B09G00N000		 .RING, STOPPER 1 Rp4.000
25 51171-09J00-000
SUB: 51171B09J00N000		 .SPRING, FRONT 1 Rp28.500
26 51175-09G00-000
SUB: 51175B09G00N000		 .CAP 1 Rp10.500
27 51177-47E01-000
SUB: 51177B47E01N000		 .SPRING,REBOUND 1 Rp5.500
28 51194-09J00-000
SUB: 51194B09J00N000		 .CYLINDER 1 Rp29.500
29 51196-16H00-000
SUB: 51196B16H00N000		 .RING, PISTON 1 Rp7.000
30 51571-09G00-000
SUB: 51571B09G00N000		 .SEAL,DUST 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
