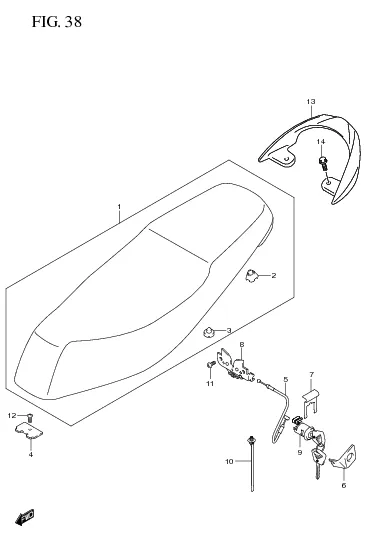

FIG. 38 SEAT

FIG. 38 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-09J01-PR7
SUB: 45100B09J00NPR7		 SEAT ASSY 1 Rp241.000
2 45148-13H30-000
SUB: 45148B13H30N000		 .CUSHION, SEAT MOUNT 2 Rp14.500
3 45148-20G80-000
SUB: 45148B20G80N000		 .CUSHION, SEAT MOUNT 2 Rp3.500
4 45271-41H00-000
SUB: 45271B41H00N000		 PLATE, SEAT HINGE 1 Rp7.500
5 45280-09J00-000
SUB: 45280B09J00N000		 CABLE, SEAT LOCK 1 Rp19.500
6 45288-41H00-000
SUB: 45288B41H00N000		 GUIDE, SEAT LOCK CABLE 1 Rp7.500
7 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
8 45700-47G00-000
SUB: 45700B47G00N000		 BRACKET, STRIKER SUPPORT 1 Rp31.500
9 95700-09G50-000
SUB: 95700B09G50N000		 LOCK ASSY, SEAT 1 Rp59.500
10 09407-17403-000
SUB: 09407B17403N000		 CLAMP (L:154) 1 Rp3.500
11 01547-0610A-000
SUB: 02112B0610AN000		 SCREW 2 Rp3.000
12 02142-0512A-000
SUB: 02142B0512AN000		 SCREW 1 Rp3.500
13 46211-09J00-13L
SUB: 46211B09J00N13L		 HANDLE, PILLION RIDER 1 Rp207.500
14 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
15 45160-09J00-PR7
SUB: 45160B09J00NPR7		 COVER COMP,SEAT TRIM 1 Rp95.500 NOT ILLUSTRATED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
