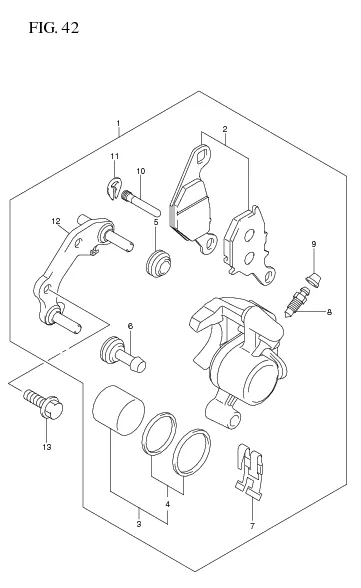

FIG. 42 FRONT CALIPER

FIG. 42 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59300-09J11-000
SUB: 59300B09J00N000		 CALIPER ASSY, FRONT 1 Rp625.500
2 59101-09810-000
SUB: 59101B09810N000		 .PAD SET 1 Rp112.000
3 59301-09810-000
SUB: 59301B09810N000		 .PISTON SET 1 Rp143.500
4 59300-10810-000
SUB: 59300B10810N000		 ..SEAL SET 1 Rp65.000
5 59312-09J00-000
SUB: 59312B09J00N000		 .BOOT 1 Rp10.500
6 59313-09J00-000
SUB: 59313B09J00N000		 .BUSH 1 Rp10.500
7 59315-09J00-000
SUB: 59315B09J00N000		 .SPRING 1 Rp18.000
8 59321-09J00-000
SUB: 59321B09J00N000		 .BLEEDER 1 Rp14.500
9 59322-09J00-000
SUB: 59322B09J00N000		 .CAP 1 Rp16.500
10 59335-09J01-000
SUB: 59335B09J00N000		 .PIN 1 Rp20.000
11 59336-09J00-000
SUB: 59336B09J00N000		 .U RETAINING RING 1 Rp5.500
12 59350-09J00-000
SUB: 59350B09J00N000		 .CARRIER CALIPER 1 Rp77.500
13 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
