Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG .29 FUEL TANKFIG. 30 LEG SHIELDFIG. 31 FRAME COVERFIG. 32 LUGGAGE BOXFIG. 33 FRONT FENDERFIG. 34 HANDLE BARFIG. 35 HANDLE LEVERFIG. 36 REAR FENDERFIG. 37 LABELFIG. 38 SEATFIG. 39 FRONT FORK DAMPERFIG. 40 STERING STEMFIG. 41 FRONT WHEELFIG. 42 FRONT CALIPERFIG. 43 FRONT MASTER CYLINDERFIG. 44 REAR SHOCK ABSORBERFIG. 45 REAR WHEELFIG. 46 REAR CARRIER (OPTIONAL)

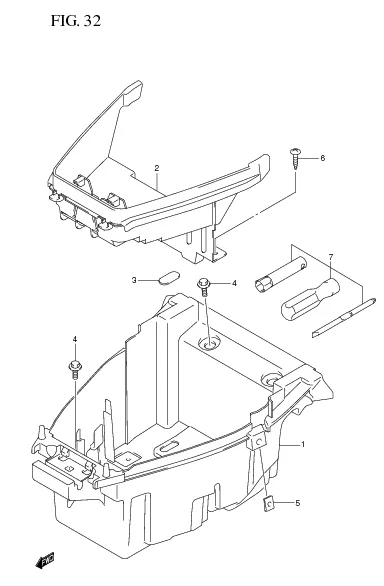

FIG. 32 LUGGAGE BOX

FIG. 32 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92210-09J03-000
SUB: 92210B09J00N000		 BOX, LUGGAGE 1 Rp169.500
2 92212-09J10-000
SUB: 92212B09J00N000		 LID, BATTERY BOX 1 Rp30.000
3 92223-41H10-000
SUB: 92223B41H10N000		 PLUG, LUGGAGE BOX 1 Rp6.000
4 09111-06109-000
SUB: 09111B06109N000		 BOLT (6X14.8) 4 Rp4.000
5 09148-04L01-000
SUB: 09148B04L01N000		 NUT 2 Rp9.000
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
7 96510-13H00-000
SUB: 96510B13H00N000		 TOOL ASSY 1 Rp42.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
