Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG .29 FUEL TANKFIG. 30 LEG SHIELDFIG. 31 FRAME COVERFIG. 32 LUGGAGE BOXFIG. 33 FRONT FENDERFIG. 34 HANDLE BARFIG. 35 HANDLE LEVERFIG. 36 REAR FENDERFIG. 37 LABELFIG. 38 SEATFIG. 39 FRONT FORK DAMPERFIG. 40 STERING STEMFIG. 41 FRONT WHEELFIG. 42 FRONT CALIPERFIG. 43 FRONT MASTER CYLINDERFIG. 44 REAR SHOCK ABSORBERFIG. 45 REAR WHEELFIG. 46 REAR CARRIER (OPTIONAL)

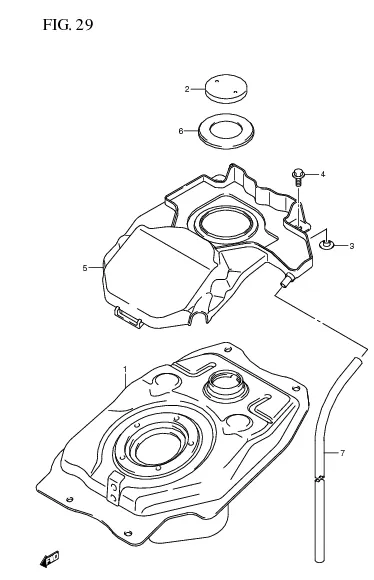

FIG .29 FUEL TANK

FIG .29 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-09J11-000
SUB: 44110B09J10N000		 TANK, FUEL 1 Rp410.000
2-1 44210-09J00-000
SUB: 44210B09J00N000		 CAP, FUEL TANK FILLER 1 Rp19.500
2-2 44210-09J00-000
SUB: 44210B09J10N000		 CAP, FUEL TANK FILLER 1 Rp19.500
3 44549-09J00-000
SUB: 44549B09J00N000		 WASHER, FUEL TANK REAR 2 Rp4.500
4 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
5 44271-09J01-000
SUB: 44271B09J00N000		 TRAY, FUEL TANK INLET 1 Rp34.000
6 44261-41H10-000
SUB: 44261B41H10N000		 RUBBER, FUEL TANK INLET 1 Rp5.500
7 09352-70120-760
SUB: 09352B70113N760		 HOSE (7X11X2000) 1 Rp26.500 L:2000->760

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
