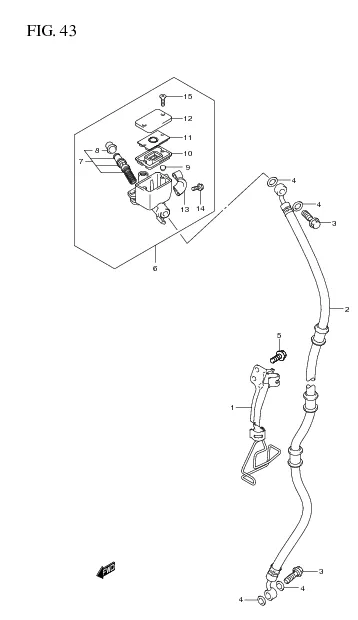

FIG. 43 FRONT MASTER CYLINDER

FIG. 43 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59260-09J10-000
SUB: 59260B09J00N000		 CLAMP, FR BRAKE HOSE 1 Rp20.500
2 59480-09J00-000
SUB: 59480B09J00N000		 HOSE, FRONT BRAKE 1 Rp217.500
3 59492-09J00-000
SUB: 59492B09J00N000		 BOLT, BRAKE FLUID 2 Rp24.500
4 59502-09J00-000
SUB: 59502B09J00N000		 WASHER, BRAKE FLUID 4 Rp33.000
5 01547-0610A-000
SUB: 01547B0612BN000		 BOLT 2 Rp3.000
6 59600-09J00-000
SUB: 59600B09J00N000		 CYLINDER ASSY, FRONT MASTER 1 Rp630.000
7 59600-09810-000
SUB: 59600B09810N000		 .PISTON & CUP SET 1 Rp109.500
8 59666-09J00-000
SUB: 59666B09J00N000		 ..BOOT 1 Rp10.500
9 59664-09J00-000
SUB: 59664B09J00N000		 .PROTECTOR 1 Rp10.000
10 59667-09J00-000
SUB: 59667B09J00N000		 .DIAPHRAGM 1 Rp12.000
11 59668-09J00-000
SUB: 59668B09J00N000		 .PLATE, DIAPHRAGM 1 Rp9.500
12 59669-09J00-000
SUB: 59669B09J00N000		 .CAP 1 Rp24.500
13 59671-09J00-000
SUB: 59671B09J00N000		 .HOLDER 1 Rp24.500
14 59675-09J00-000
SUB: 59675B09J00N000		 .BOLT, HOLDER 2 Rp13.000
15 59691-09J00-000
SUB: 59691B09J00N000		 .SCREW, CAP 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
