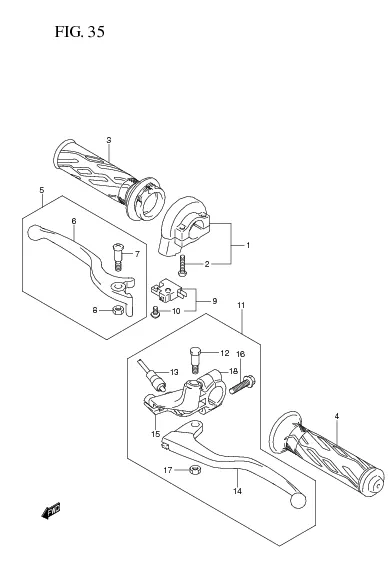

FIG. 35 HANDLE LEVER

FIG. 35 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57100-09G11-000
SUB: 57100B09G11N000		 CASE ASSY, THROTTLE 1 Rp19.500
2 DISCONTINUE
SUB: 02112-0520A-000		 .SCREW 2 -
3 57110-09G10-000
SUB: 57110B09G10N000		 GRIP, THROTTLE 1 Rp42.500
4 57211-41H00-000
SUB: 57211B41H00N000		 GRIP LH 1 Rp22.500
5 57300-09J00-000
SUB: 57300B09J00N000		 LEVER ASSY, BRAKE 1 Rp106.000
6 57421-09J00-000
SUB: 57421B09J00N000		 .LEVER, BRAKE 1 Rp91.000
7 57431-29C20-000
SUB: 57431B29C20N000		 .BOLT, BRAKE LEVER PIVOT 1 Rp5.000
8 08319-2106A-000
SUB: 08319B2106AN000		 .NUT 1 Rp5.000
9 57460-09J00-000
SUB: 57460B09J00N000		 SWITCH ASSY, STOP 1 Rp33.500
10 DISCONTINUE
SUB: 57465B17C00N000		 .SCREW 1 -
11 57500-09J10-000
SUB: 57500B09J10N000		 LEVER ASSY, RR BRAKE & SWITCH 1 Rp151.000
12 57431-13HA0-000
SUB: 57431B13H10N000		 .BOLT, BRAKE LEVER PIVOT 1 Rp5.500
13 57470-10J40-000
SUB: 57470B10J10N000		 .SWITCH ASSY, BRAKE 1 Rp46.500
14 57621-13HA0-000
SUB: 57621B13H10N000		 .LEVER, REAR BRAKE 1 Rp32.500
15 57511-09J10-000
SUB: 57511B09J10N000		 .HOLDER,BRAKE LEVER,L 1 Rp72.000
16 01547-0625A-000
SUB: 01547B0625AN000		 .BOLT 1 Rp6.500
17 08319-2106A-000
SUB: 08319B2106AN000		 .NUT 1 Rp5.000
18 59671-09J10-000
SUB: 59671B09J10N000		 .HOLDER 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
