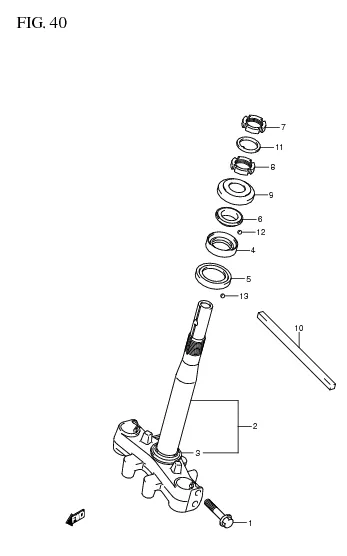

FIG. 40 STERING STEM

FIG. 40 STERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51166-41H00-000
SUB: 51166B41H00N000		 BOLT 4 Rp7.500
2 51410-09J00-000
SUB: 51410B09J00N000		 BRACKET, UNDER 1 Rp538.500
3 51622-41H00-000
SUB: 51622B41H00N000		 .RACE, STEERING OUTER LOWER 1 Rp56.500
4 51611-41H01-000
SUB: 51611B41H00N000		 RACE, STEERING INNER UPPER 1 Rp20.500
5 51612-41H01-000
SUB: 51612B41H00N000		 RACE, STEERING INNER LOWER 1 Rp20.500
6 51621-41H00-000
SUB: 51621B41H00N000		 RACE, STEERING OUTER UPPER 1 Rp31.000
7 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM LOCK 1 Rp20.000
8 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 1 Rp20.000
9 51643-06001-000
SUB: 51643-06001L000		 SEAL, STEERING DUST UPPER 1 Rp3.000
10 51645-41H00-000
SUB: 51645B41H00N000		 CUSHION, DUST COVER LOWER 1 Rp3.000
11 09166-24001-000
SUB: 09166B24001N000		 WASHER (24.5X34X2.3) 1 Rp4.500
12 06111-06004-000
SUB: 06111B06003N000		 BALL 23 Rp1.000
13 06111-06004-000
SUB: 06111B06003N000		 BALL 28 Rp1.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
