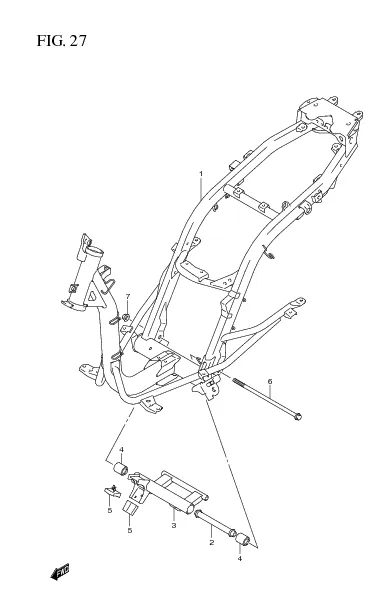

FIG. 27 FRAME

FIG. 27 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-09J20-000
SUB: 41100B09J10N000		 FRAME 1 Rp2.188.500
2 41170-09J00-000
SUB: 41170B09J00N000		 SPACER, CRANKCASE BRKT 1 Rp24.500
3 41180-09J10-000
SUB: 41180B09J00N000		 BRACKET, CRANKCASE 1 Rp141.000
4 41184-09J00-000
SUB: 41184B09J00N000		 BUSH, CRANKCASE BRKT 2 Rp35.500
5 41185-09J10-000
SUB: 41185B09J00N000		 CUSHION, SWING STOP 2 Rp11.500
6 09103-10449-000
SUB: 09103B10449N000		 BOLT (10X260) 1 Rp39.000
7 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
