Suzuki Nex Fi

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 FRAMEFIG. 28 STANDFIG .29 FUEL TANKFIG. 30 LEG SHIELDFIG. 31 FRAME COVERFIG. 32 LUGGAGE BOXFIG. 33 FRONT FENDERFIG. 34 HANDLE BARFIG. 35 HANDLE LEVERFIG. 36 REAR FENDERFIG. 37 LABELFIG. 38 SEATFIG. 39 FRONT FORK DAMPERFIG. 40 STERING STEMFIG. 41 FRONT WHEELFIG. 42 FRONT CALIPERFIG. 43 FRONT MASTER CYLINDERFIG. 44 REAR SHOCK ABSORBERFIG. 45 REAR WHEELFIG. 46 REAR CARRIER (OPTIONAL)

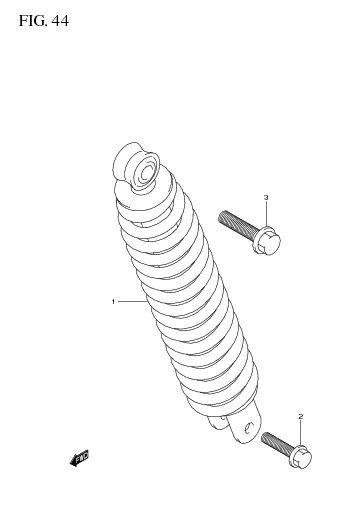

FIG. 44 REAR SHOCK ABSORBER

FIG. 44 REAR SHOCK ABSORBER
No No. Part Description Qty Price Per Pcs Remarks
1 62100-09J10-019
SUB: 62100B09J00N019		 ABSORBER ASSY, REAR SHOCK 1 Rp241.000
2 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500 LOWER
3 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000 UPPER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
