SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

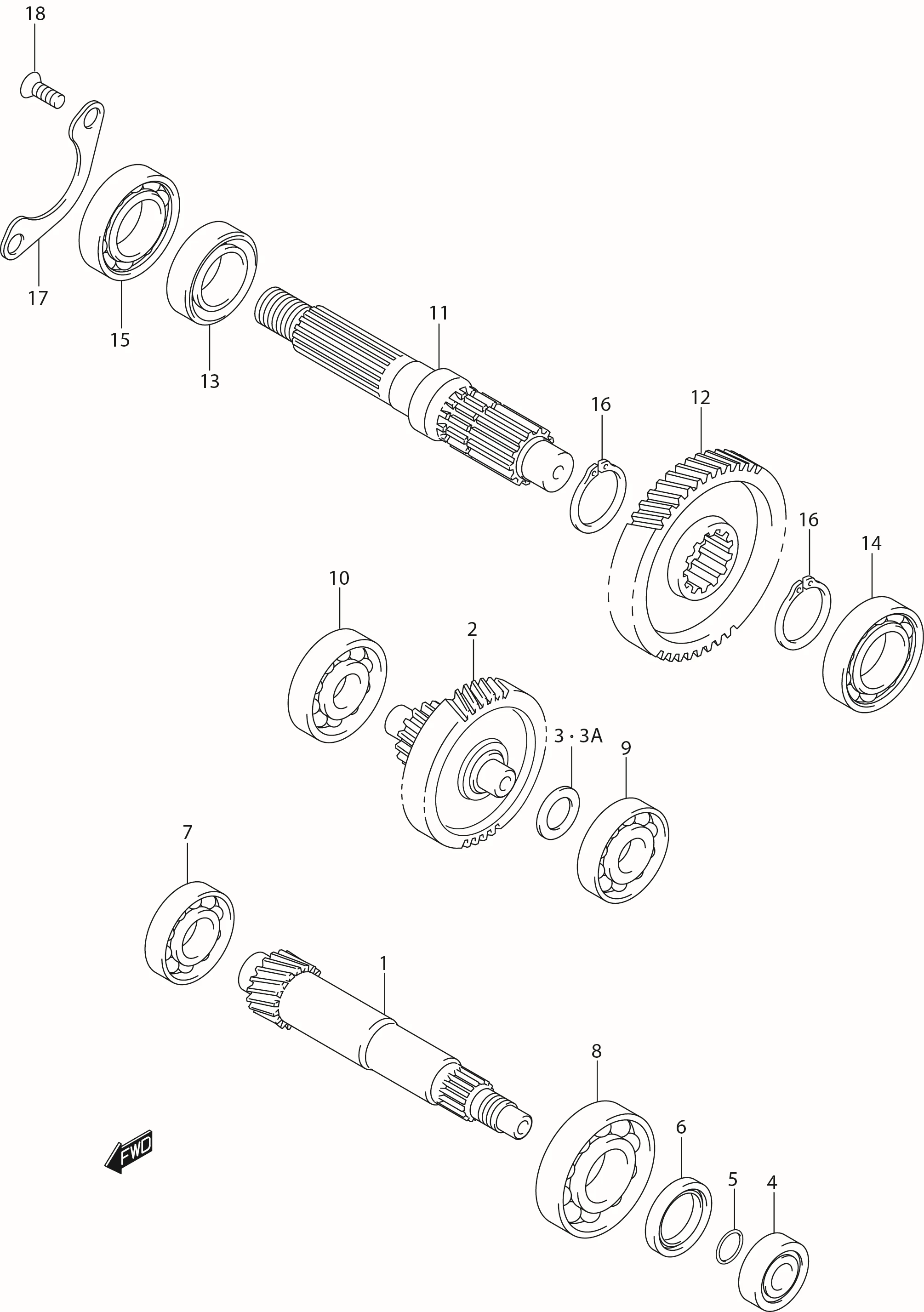

FIG.17 TRANSMISSION (2)

FIG.17 TRANSMISSION (2)
No No. Part Description Qty Price Per Pcs Remarks
1 24131-46G11-000
SUB: 24131B46G10N000		 SHAFT, DRIVE 1 Rp132.500
2 24150-46G10-000
SUB: 24150B46G10N000		 SHAFT, IDLE 1 Rp227.000
3 09181-12167-000 WASHER, IDLE SHAFT, L 1 Rp8.500 12X20X1.0
3A 24152-46810-000 SHIM SET, IDLE SHAFT, L 1 - T:1.1/1.2/1.3/1.4/1.5/1.6/1.7/
4 09262-10017-000
SUB: 09262B10017N000		 BEARING, DRIVE SHAFT, L 1 Rp36.500 10X26X8
5 09280-10016-000
SUB: 09280-10015-000		 O RING, DRIVE SHAFT 1 Rp19.500 D:1.9,ID:9.8
6 09283-20060-001
SUB: 09283-20052-000		 SEAL, DRIVE SHAFT OIL 1 Rp21.000 20X28X5
7 08110-60020-000
SUB: 08110B60020N000		 BEARING, DRIVE SHAFT, R 1 Rp43.000
8 08110-62040-000
SUB: 08110B62040N000		 BEARING, DRIVE SHAFT MIDDLE 1 Rp43.000
9 08113-62010-000
SUB: 08113B62010N000		 BEARING, IDLE SHAFT, L 1 Rp32.500
10 08113-62010-000
SUB: 08113B62010N000		 BEARING, IDLE SHAFT, R 1 Rp32.500
11 DISCONTINUE
SUB: 24141B46G00N000		 SHAFT, REAR AXLE 1 -
12 24371-46G10-000
SUB: 24371B46G10N000		 GEAR, FINAL DRIVEN 1 Rp106.000
13 DISCONTINUE
SUB: 09283-27014-000		 SEAL, AXLE SHAFT OIL 1 - 27X40X6.0
14 08110-62030-000 BEARING, AXLE SHAFT, L 1 Rp33.500
15 08130-62047-000
SUB: 08130B62047N000		 BEARING, AXLE SHAFT, R 1 Rp53.000
16 08331-31229-000
SUB: 08331B31229N000		 CIRCLIP, FINAL DRIVEN GEAR 2 Rp8.500
17 24751-09J00-000
SUB: 24751B07900N000		 RETAINER, AXLE SHAFT BEARING 1 Rp13.500
18 02122-0616A-000
SUB: 02122B06163N000		 SCREW, BEARING RETAINER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
