SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

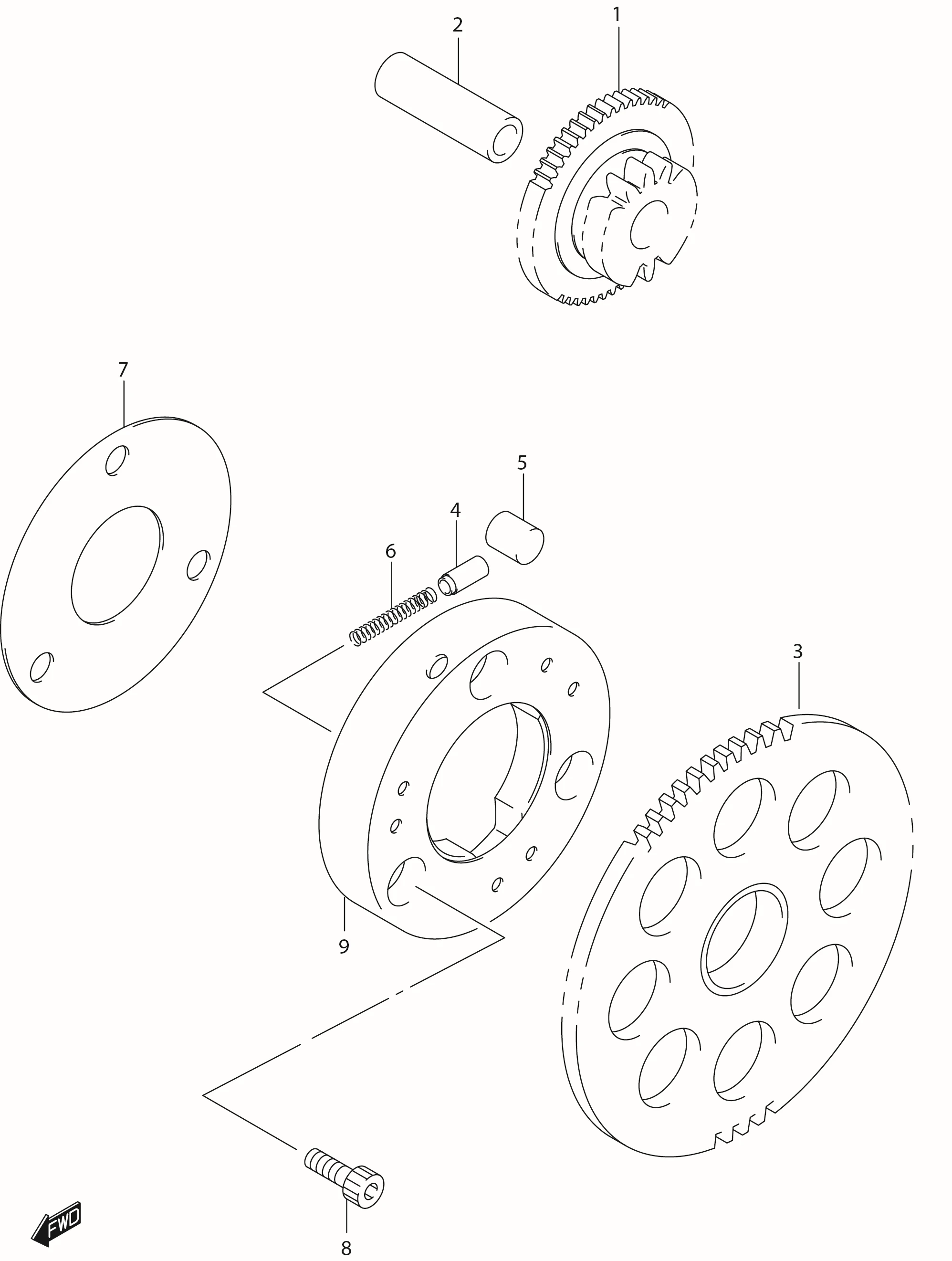

FIG.7 STARTER CLUTCH

FIG.7 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12611-33G00-000		 GEAR, STARTER IDLE 1 -
2 09206-13007-000 PIN 1 Rp35.500
3 12620-46G00-000
SUB: 12620B46G00N000		 CLUTCH SET, STARTER 1 Rp159.000
4 12633-05300-000
SUB: 12633B05300N000		 ?PIECE, STARTER CLUTCH RLR 3 Rp49.500
5 09261-10007-000
SUB: 09261B10007N000		 ?ROLLER, STARTER CLUTCH 3 Rp12.000
6 DISCONTINUE
SUB: 09440B03007N000		 ?SPRING, STARTER CLUTCH 3 -
7 12649-30D00-000 SHIM, STARTER CLUTCH HUB 1 Rp41.500
8 07130-0612A-000
SUB: 07130-06123-000		 BOLT 3 Rp3.500
9 12630-41H00-000
SUB: 12630B41H00N000		 CLUTCH,STARTER ONE WAY 1 Rp250.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
