SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

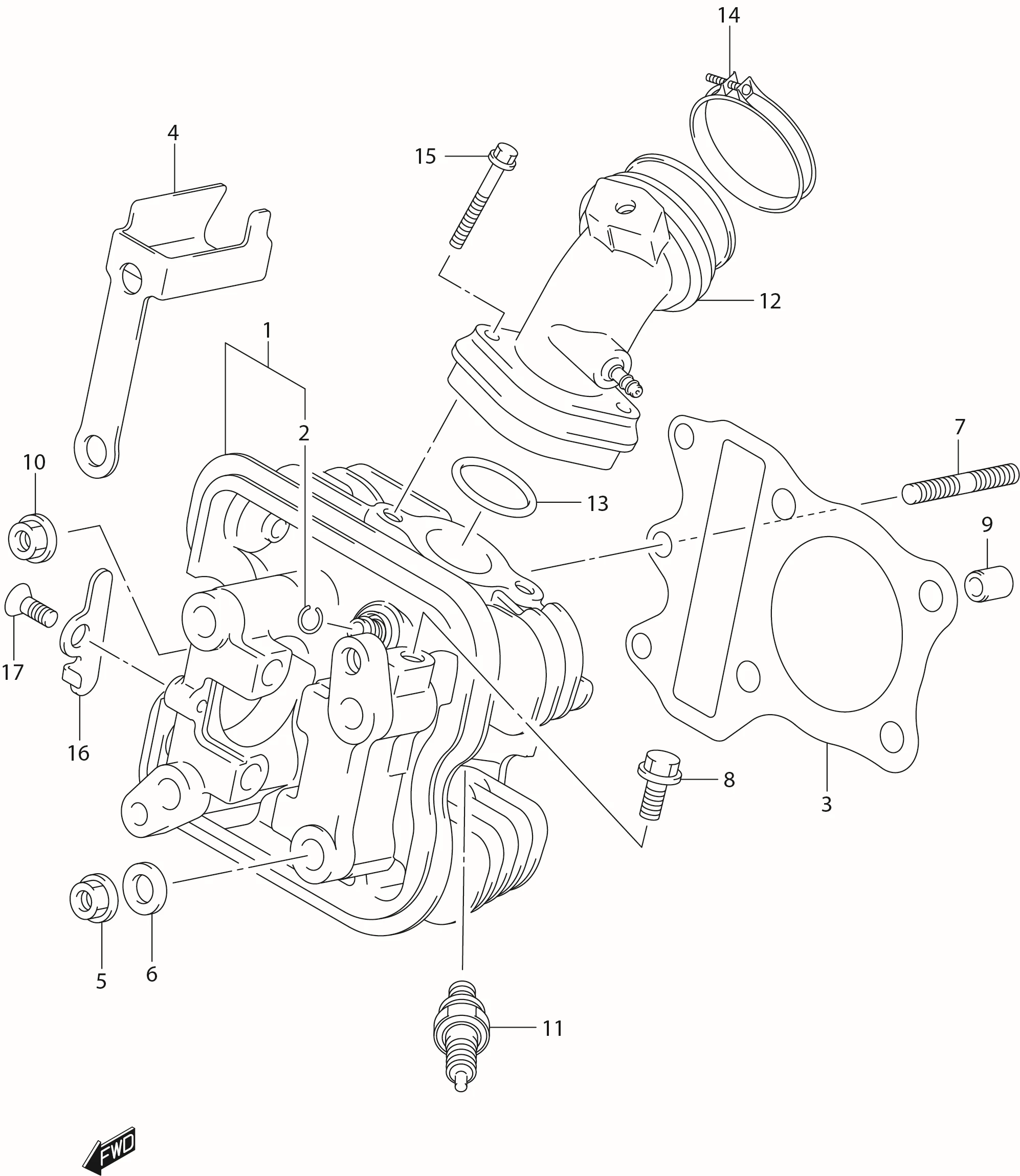

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B46G00N000		 HEAD, CYLINDER 1 -
2 09381-10004-000 ?SNAP RING 2 Rp3.000
3 11141-46G10-000
SUB: 11141B46G10N000		 GASKET, CYLINDER HEAD 1 Rp20.500
4 DISCONTINUE
SUB: 11135-46G00-000		 PLATE, OIL SEPARATOR 1 -
5 08316-1008A-000
SUB: 08316B10083N000		 NUT 4 Rp3.500
6 09160-08121-000
SUB: 09160B08121N000		 WASHER 2 Rp6.500
7 01421-0630B-000
SUB: 01421-06303-000		 BOLT, STUD 1 Rp3.500
8 DISCONTINUE
SUB: 01547B06103N000		 PLUG 1 -
9 04211-11129-000 PIN 2 Rp2.000
10 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
11-1 09482-00406-000
SUB: 09482B00715N000		 PLUG, SPARK (C6HSA) 1 Rp25.500
11-2 DISCONTINUE
SUB: 09482B00815N000		 PLUG, SPARK (U20FS-U) 1 -
12 13110-46G10-000
SUB: 13110B46G01N000		 PIPE, INTAKE 1 Rp208.500
13 09280-26009-000
SUB: 09280B26009N000		 O RING, D:2.4, ID:25.7 1 Rp3.000
14 DISCONTINUE
SUB: 13170-46G10-000		 CLAMP 1 -
15 01547-0635A-000
SUB: 01547B06353N000		 BOLT 1 Rp6.500
16 12862-33G00-000
SUB: 12862B33G00N000		 RETAINER, CAMSHAFT 1 Rp23.500
17 02122B06123N000 SCREW 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
