SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

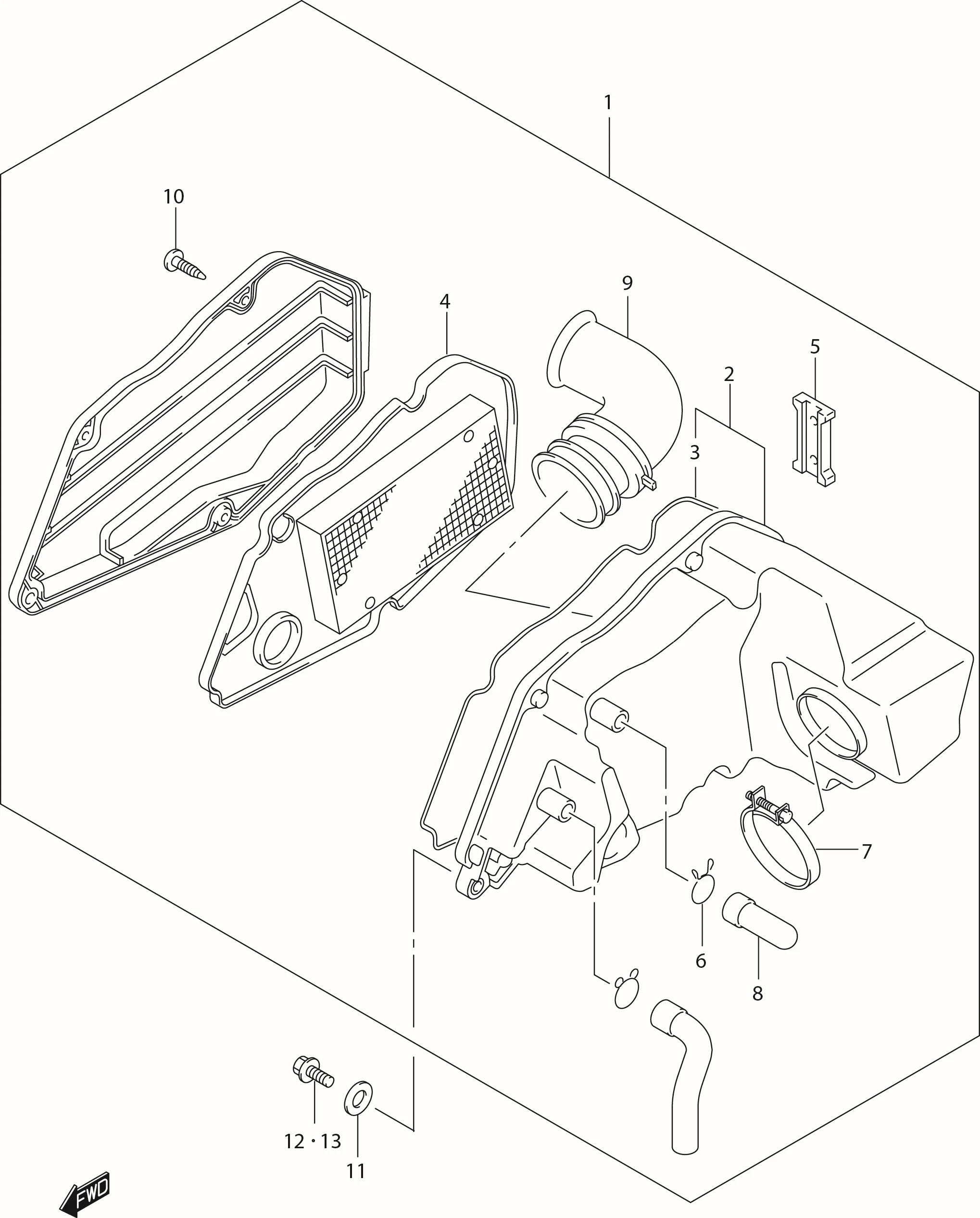

FIG.11 AIR CLEANER

FIG.11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-46G01-000
SUB: 13700B46G01N000		 CLEANER ASSY, AIR 1 Rp176.000
2 13740B46G00N000 ?CAP, AIR CLNR 1 -
3 13746-46G00-000
SUB: 13746B46G00N000		 ??GASKET 1 Rp14.500
4 13780-46G01-000
SUB: 13780B46G01N000		 ?FILTER ASSY, AIR CLNR 1 Rp45.000
5 13821-46G00-000
SUB: 13821B46G00N000		 ?SLIDER, AIR CLNR 1 Rp9.000
6 13824-18910-000
SUB: 13824B18910N000		 ?CLIP 1 Rp3.500
7 13826-46G01-000
SUB: 09402B48208N000		 ?CLAMP 1 Rp12.000
8 13871-09G00-000
SUB: 13871B09G00N000		 ?PLUG, DRAIN 1 Rp4.000
9 13881-46G00-000
SUB: 13881B46G00N000		 ?TUBE, OUTLET 1 Rp21.000
10 03541-0520A-000
SUB: 03541B05203N000		 ?SCREW 4 Rp3.500
11 09160-06028-000 WASHER, AIR CLENAER 2 Rp3.500
12 01547-0620B-000
SUB: 01547-06203L000		 BOLT, AIR CLEANER 1 Rp6.500
13 01547-0625A-000
SUB: 01547-06253-000		 BOLT, AIR CLEANER 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
