SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

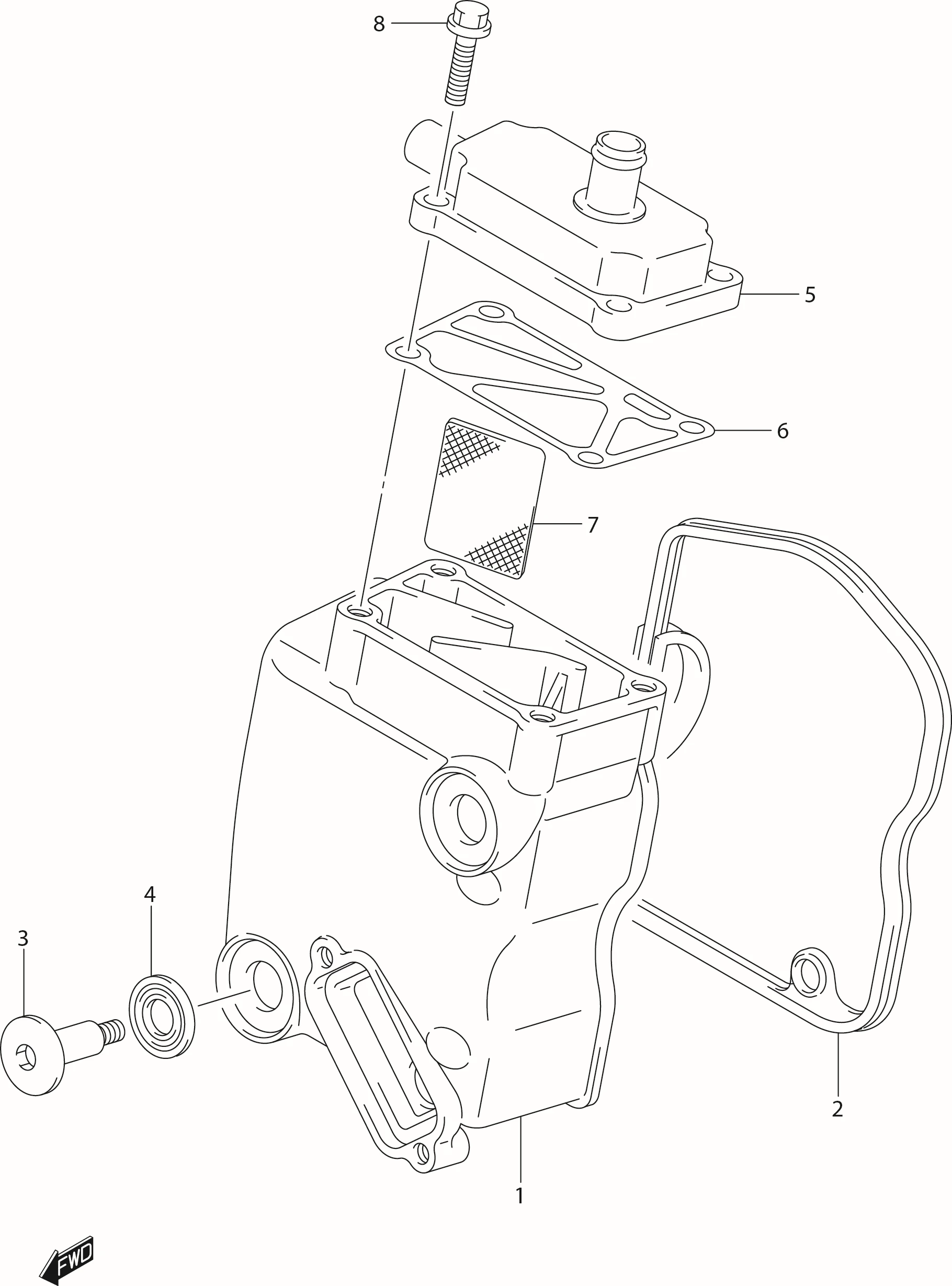

FIG.1 CYLINDER HEAD COVER

FIG.1 CYLINDER HEAD COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11171-46G00-000 SUB: 11171B46G00N000	COVER, CYLINDER HEAD	1	Rp86.000
2	11173-46G10-000 SUB: 11173-46G00-000	GASKET, CYLINDER HEAD COVER	1	Rp35.500
3	09106-07003-000	BOLT, 7X31	2	Rp6.500
4	09161-11008-000	WASHER	2	Rp25.000
5	DISCONTINUE SUB: 11180B46G00N000	COVER, BREATHER	1	-
6	11177-46G10-000 SUB: 11177B46G10N000	GASKET, BREATHER COVER	1	Rp5.500
7	11186-46G10-000	SEPARATOR, OIL BREATHER	1	Rp39.500
8	01547-0620B-000 SUB: 01547-06203L000	BOLT	4	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
