SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

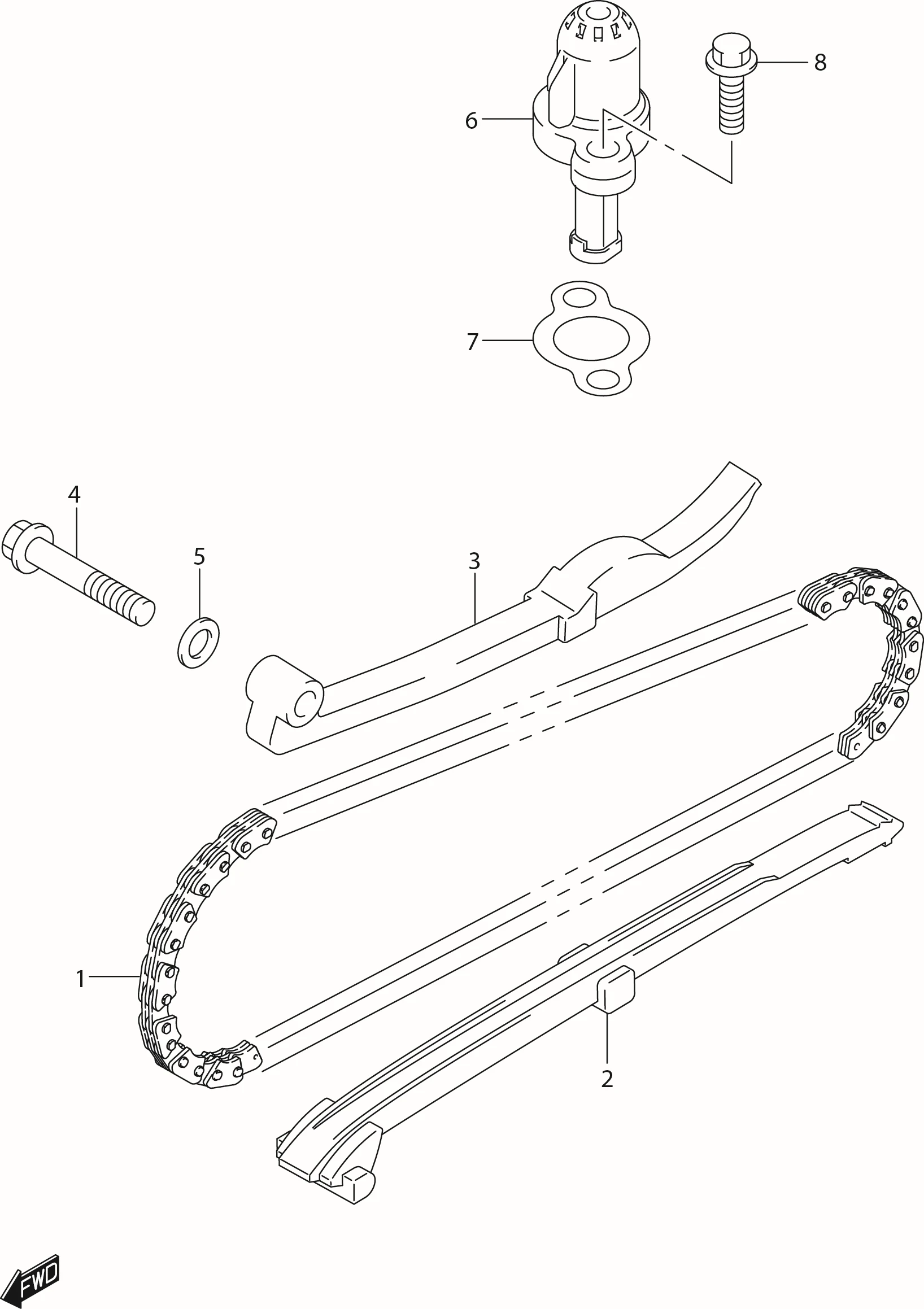

FIG.9 CAM CHAIN

FIG.9 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-20G11-000
SUB: 12760-20G00-000		 CHAIN, CAMSHAFT DRIVE 1 Rp100.000
2 12771-33G10-000
SUB: 12771B33G30N000		 GUIDE, CAM CHAIN 1 Rp63.000
3 DISCONTINUE
SUB: 12811-28G40-000		 TENSIONER, CAM CHAIN 1 -
4 09103-06247-000 BOLT, 6X32 1 Rp4.000
5 09168-06004-000
SUB: 09168B06004N000		 WASHER, 6.2X11X1.2 1 Rp2.500
6 12830-09G00-000
SUB: 12830B09G60N000		 ADJUSTER ASSY, TENSIONER 1 Rp253.000
7 12837-46G10-000
SUB: 12837B46G10N000		 GASKET, TENSIONER ADJUSTER 1 Rp4.000
8 01547-0620B-000
SUB: 01547-06203L000		 BOLT 2 Rp6.500
9 12630-41H00-000
SUB: 12630B41H00N000		 CLUTCH,STARTER ONE WAY 1 Rp250.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
