SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

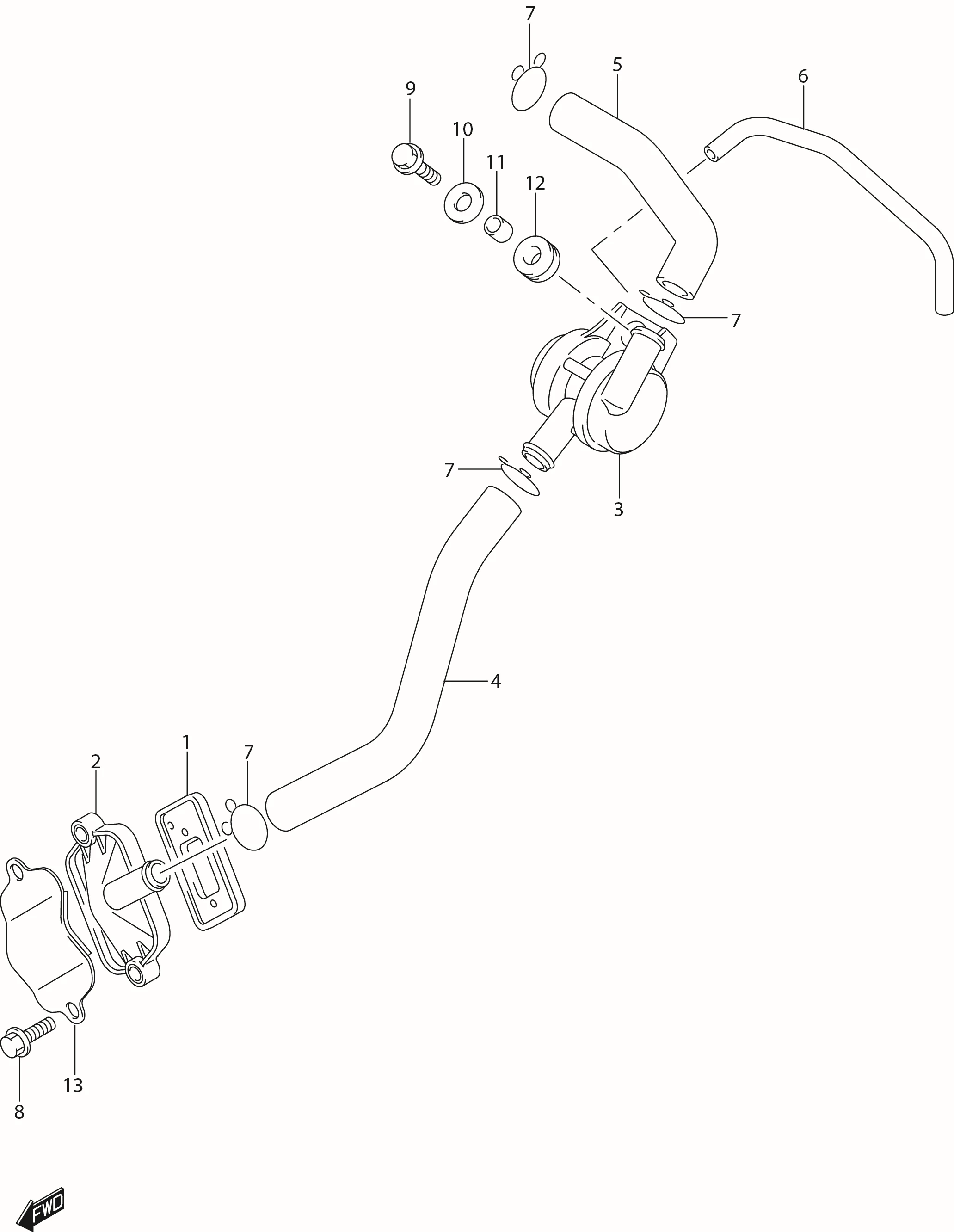

FIG.15 2ND AIR

FIG.15 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-06G10-000
SUB: 18450-06G00-000		 VALVE ASSY, 2ND AIR REED 1 Rp61.000
2 18531-46G00-000 COVER, 2ND AIR REED VALVE 1 Rp18.500
3 18510-46G10-000
SUB: 18510-46G00-000		 VALVE ASSY, AIR CUT 1 Rp101.000
4 DISCONTINUE
SUB: 18461-46G00-000		 HOSE 2ND AIR VALVE 1 -
5 18711-46G00-000 HOSE 2ND AIR VALVE 1 Rp13.500
6 18762-46G00-000 HOSE 2ND AIR VALVE VACUUM 1 Rp17.000
7 09401-15101-000
SUB: 09401B15101N000		 CLIP 4 Rp3.000
8 01547-0620B-000
SUB: 01547-06203L000		 BOLT 2 Rp6.500
9 01547-0620B-000
SUB: 01547-06203L000		 BOLT 1 Rp6.500
10 09160-06129-000 WASHER (6.5X16X1) 1 Rp5.500
11 DISCONTINUE
SUB: 09180-06166-000		 SPACER (6.1X8X7) 1 -
12 09320-07014-000 CUSHION 1 Rp4.500
13 18750-46G00-000
SUB: 18750B46G00N000		 PROTECTOR 1 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
