SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

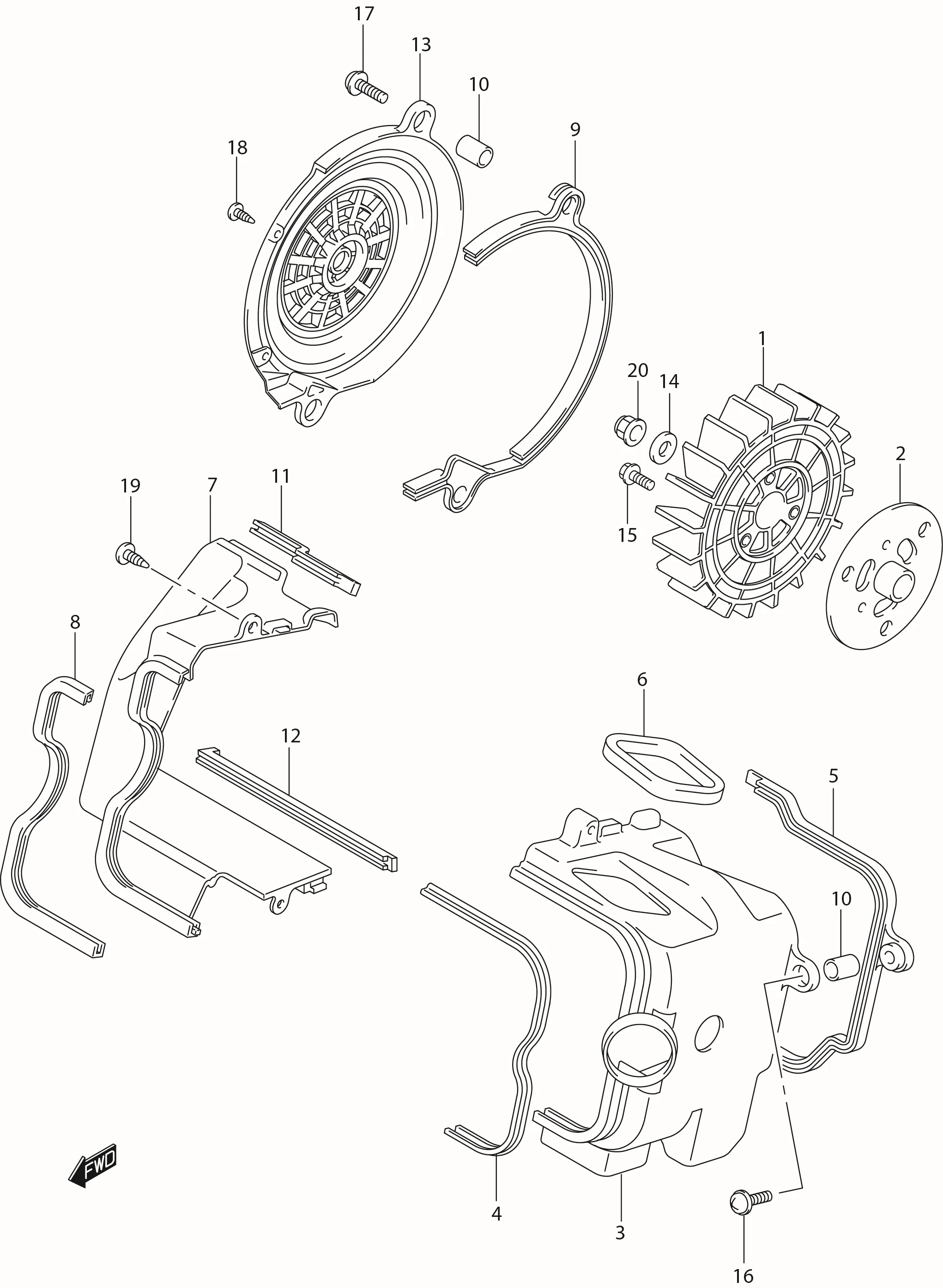

FIG.14 COOLING FAN

FIG.14 COOLING FAN
No No. Part Description Qty Price Per Pcs Remarks
1 17110-46G10-000
SUB: 17110B46G10N000		 FAN, COOLING 1 Rp86.000
2 17116-46G00-000 HOLDER, COOLING FAN 1 Rp99.000
3 17121-46G00-000
SUB: 17121B46G00N000		 COWLING, CYLINDER 1 Rp54.500
4 17122-46G00-000 MOLD, CYLINDER COWLING 1 Rp20.000
5 17123-46G00-000 DAMPER, CYLINDER COWLING 1 Rp20.000
6 17125-46G00-000 GROMMET, INTAK PIPE HOLE 1 Rp4.000
7 17131-46G00-000
SUB: 17131B46G00N000		 COWLING, FAN NO.1 1 Rp38.500
8 17132-46G00-000 MOLD, FANK COWLING 1 Rp12.500
9 17133-46G00-000 DAMPER, FAN COWLING NO.1 1 Rp14.000
10 17134-20E00-000 SPACER, FAN COWLING 1 Rp24.500
11 17134-46G00-000 DAMPER, FAN COWLING NO.2 1 Rp14.000
12 17135-46G00-000 DAMPER, FAN COWLING NO.3 1 Rp11.500
13 17141-46G00-000
SUB: 17141B46G00N000		 COWLING NO.2 1 Rp20.500
14 DISCONTINUE
SUB: 09168-10017-000		 GASKET (10.5X22X2.3) 1 -
15 DISCONTINUE
SUB: 01550B06123N000		 BOLT 3 -
16 02112-1625A-000
SUB: 02112B16253N000		 SCREW 1 Rp3.500
17 02112-16253-000 SCREW 2 -
18 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
19 03541-0620A-000
SUB: 03541B06203N000		 SCREW 2 Rp15.500
20 08313-2010A-000
SUB: 08313-20103-000		 NUT 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
