SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

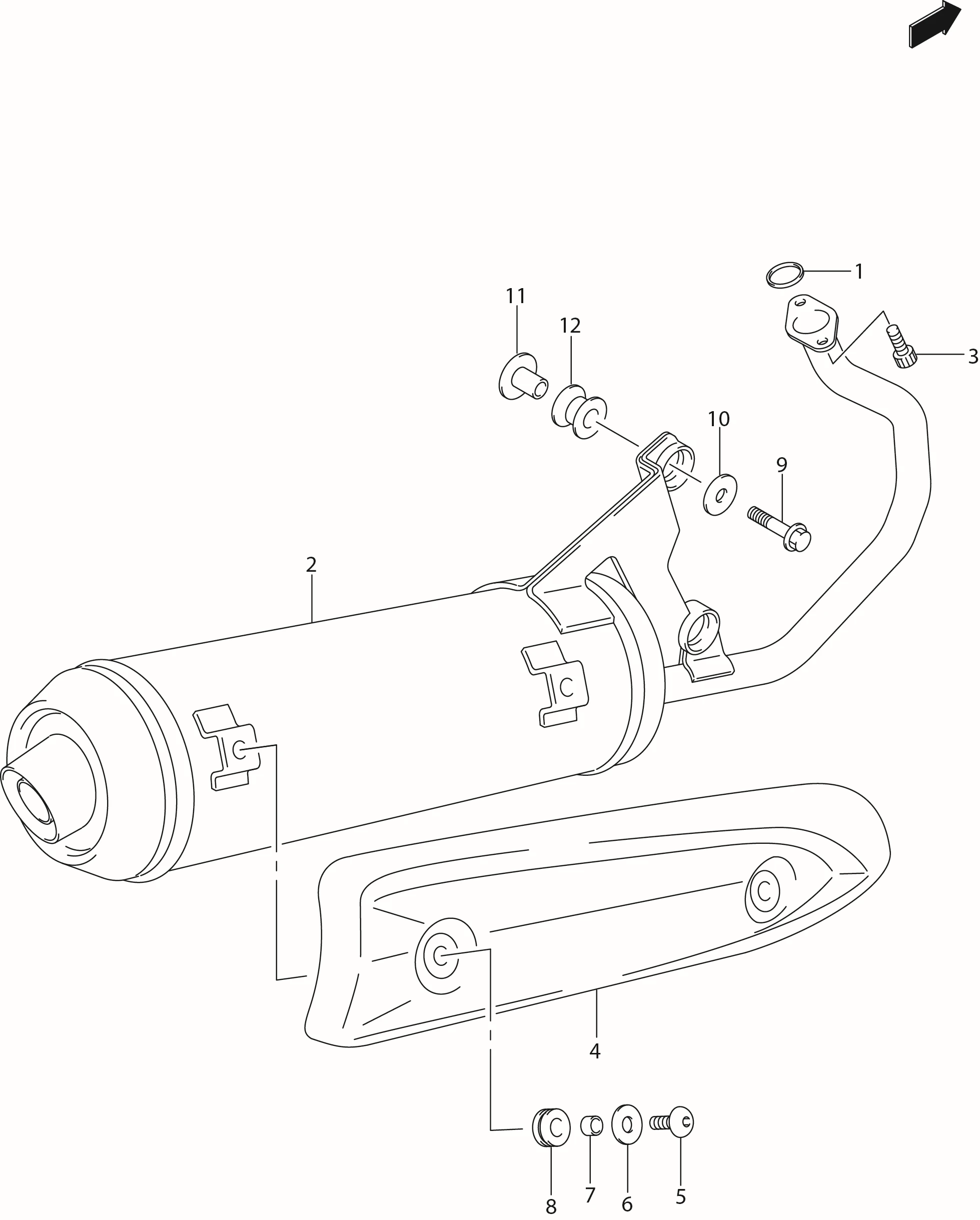

FIG.12 MUFFLER

FIG.12 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D10-000
SUB: 14181B46G00N000		 GASKET, EXH PIPE 1 Rp9.000
2 14310-46G41-000
SUB: 14310B46G02N000		 BODY, MUFFLER 1 Rp1.679.500
3 07130-0820B-000
SUB: 07130-08203-000		 BOLT 2 Rp13.000
4 DISCONTINUE
SUB: 14780B46G00N000		 COVER, MUFFLER 1 -
5 09139-06091-000 SCREW (6X12) 2 Rp8.500
6 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
7 09180-06256-000 SPACER (6.5X9X5.7) 2 Rp3.000
8 09320-08051-000
SUB: 09320B08051N000		 CUSHION 2 Rp3.000
9 01550-0835B-000
SUB: 01550B08353N000		 BOLT 2 Rp4.500
10 09160-08032-000
SUB: 09160B08032N000		 WASHER (8.5X26X1.2) 2 Rp6.500
11 09180-08151-000
SUB: 09180B08151N000		 SPACER (8.6X12X17.5) 2 Rp22.000
12 09320-12032-000
SUB: 09320B12032N000		 CUSHION 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
