SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVERFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 COOLING FANFIG.15 2ND AIRFIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

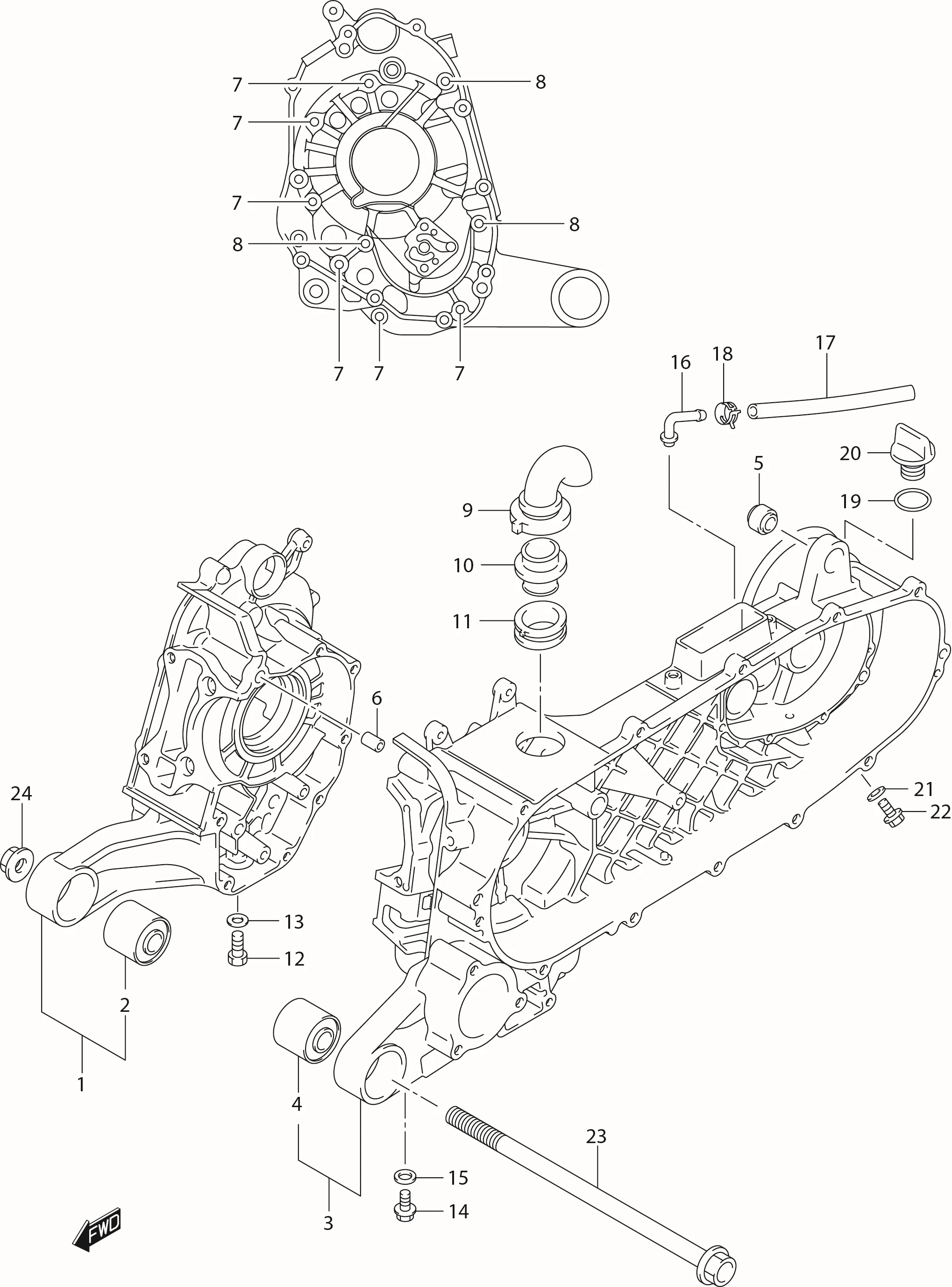

FIG.4 CRANKCASE

FIG.4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11310B46G00N000		 CRANKCASE SET, RH 1 -
2 11315-46G00-000 ?BUSH, ENGINE MTG 1 Rp69.500
3 DISCONTINUE
SUB: 11320B46G00N000		 CRANKCASE SET, LH 1 -
4 11315-46G00-000 ?BUSH, ENGINE MTG 1 Rp69.500
5 09319-10032-000 ?BUSH, 10.2X22.3X20 1 Rp24.500
6 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
7 01547-0655A-000
SUB: 01547B06553N000		 BOLT 6 Rp7.500
8 01547-0675A-000
SUB: 01547B06753N000		 BOLT 3 Rp7.500
9 11325-46G00-000 TUBE, CRANKCASE 1 Rp22.000
10 11326-46G00-000 GROMMET, CRANKCASE TUBE 1 Rp4.000
11 DISCONTINUE
SUB: 11327-46G00-000		 GROMMET, CRANKCASE TUBE 1 -
12 01500-1016A-000
SUB: 01500-10163-000		 PLUG, OIL DRAIN 1 Rp7.500
13 09168-10L02-000
SUB: 09168-10002-000		 GASKET, 10X14X3.6 1 Rp2.500
14 01550-0812A-000
SUB: 01550B08123N000		 PLUG, OIL CHECK 2 Rp3.500
15 09168-08008-000 GASKET, 8.2X14X1 2 Rp3.000
16 DISCONTINUE
SUB: 16912B46G00N000		 UNION, GEAR BOX BREATHE 1 -
17 DISCONTINUE
SUB: 09352-70113-120		 HOSE, GEAR BOX BREATHER 1 - L:600!120
18 09401-10409-000 CLIP, BREATHER HOSE 1 Rp7.500
19 DISCONTINUE
SUB: 11971B46G00N000		 PLUG, GEAR BOX OIL FILLER 1 -
20 09280-14003-000
SUB: 09280-14003L000		 O RING, D:2.5 ID:13.8 1 Rp3.000
21 01550-0812A-000
SUB: 01550-08123-000		 PLUG, GEAR BOX OIL DRAIN 1 Rp3.500
22 09168-08008-000 GASKET, 8.2X14X1 1 Rp3.000
23 01550-08207-000
SUB: 09103-08123-000		 BOLT, L:204 1 Rp19.000
24 08316-1012A-000
SUB: 08316-10123-000		 NUT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
