SPIN 125 (UY 125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD COVER FIG.2 CYLINDER HEAD FIG.3 CYLINDER FIG.4 CRANKCASE FIG.5 CRANKCASE COVER FIG.6 CRANKSHAFT FIG.7 STARTER CLUTCH FIG.8 CAMSHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 COOLING FAN FIG.15 2ND AIR FIG.16 TRANSMISSION (1)FIG.17 TRANSMISSION (2)FIG.18 KICK STARTER

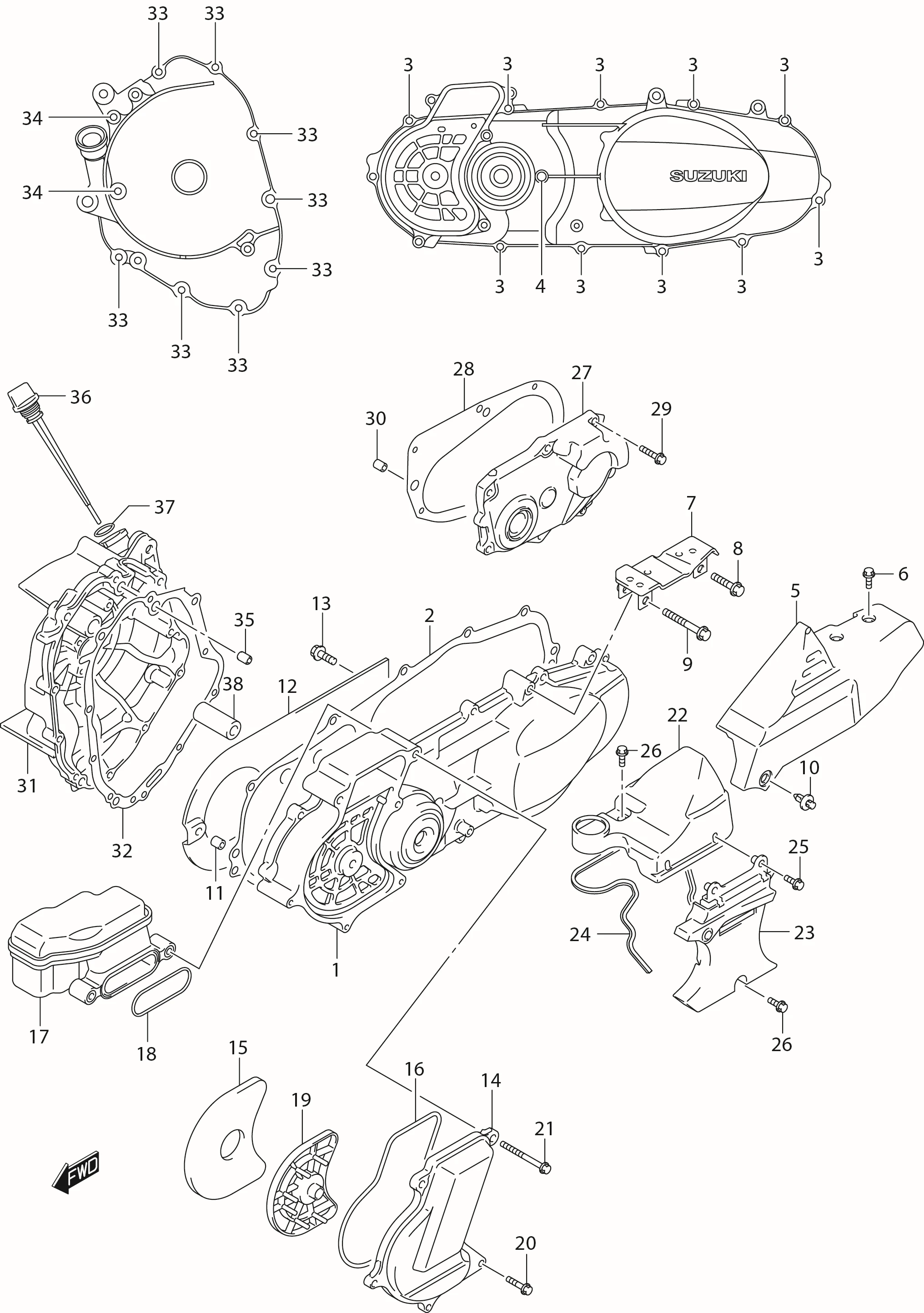

FIG.5 CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 11340B46G00N000	COVER, CLUTCH	1	-
2	11482-41H10-000 SUB: 11482B46G10N000	GASKET, CLUTCH COVER	1	Rp43.000
3	01547-0625A-000 SUB: 01547B06253N000	BOLT	9	Rp6.500
4	01547-0630A-000 SUB: 01547B06303N000	BOLT	1	Rp6.500
5	11370-46G00-000 SUB: 11370B46G00N000	COVER, CLUTCH UPPER	1	Rp55.500
6	01547-0616A-000 SUB: 01547B06163N000	BOLT	2	Rp6.500
7	DISCONTINUE SUB: 11390B46G00N000	BRACKET, UPPER	1	-
8	01550-0830A-000 SUB: 01550-08303-000	BOLT	1	Rp4.000
9	01550-0845A-000 SUB: 01550-08453-000	BOLT	1	Rp18.000
10	09409-08308-000	CLIP	1	Rp12.000
11	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
12	11346-46G00-000 SUB: 11346B46G00N000	PLATE, CLUTCH COVER AIR	1	Rp24.500
13	01547-0610A-000 SUB: 01547B06123N000	BOLT	3	Rp3.000
14	DISCONTINUE SUB: 11381B46G00N000	COVER, BELT COOLING	1	-
15	11382-46G01-000	FILTER, BELT COOLING	1	Rp8.000
16	11383-46G00-000	O RING, BELT COOLING COVER	1	Rp8.000
17	DISCONTINUE SUB: 11410-46G00-000	DUCT, BELT COOLING	1	-
18	11385-46G00-000	O RING, BELT COOLING DUCT	1	Rp4.000
19	11386-46G00-000	PLATE, BELT COOLING COVER	1	Rp9.500
20	01547-0620B-000 SUB: 01547-06203L000	BOLT	2	Rp6.500
21	01547-0665A-000 SUB: 01547B06653N000	BOLT	4	Rp7.500
22	DISCONTINUE SUB: 11361-46G00-000	COVER, BOLT COOLING DUCT NO.1	1	-
23	DISCONTINUE SUB: 11362-46G00-000	COVER, BELT COOLING DUCT NO.2	1	-
24	11363-46G00-000	MOLD, COVER	1	Rp13.000
25	03141-0516B-000 SUB: 03141-05163-000	SCREW	2	Rp3.500
26	01547-0616A-000 SUB: 01547B06163N000	BOLT	3	Rp6.500
27	11431-46G00-000 SUB: 11431B46G00N000	COVER, GEAR BOX	1	Rp248.000
28	11484-46G10-000 SUB: 11484B46G10N000	GASKET, GEAR BOX COVER	1	Rp14.500
29	01547-0625A-000 SUB: 01547B06253N000	BOLT	7	Rp6.500
30	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
31	DISCONTINUE SUB: 11351B46G01N000	COVER, CRANKSHAFT, R	1	-
32	11483-46G10-000 SUB: 11483B46G10N000	GASKET, CRANKSHAFT COVER	1	Rp21.500
33	01547-0630A-000 SUB: 01547B06303N000	BOLT	7	Rp6.500
34	01547-0660A-000 SUB: 01547B06603N000	BOLT	2	Rp7.500
35	09206-08008-000 SUB: 09206B08008N000	PIN	2	Rp4.000
36	DISCONTINUE SUB: 11971B33G01N000	GAUGE, OIL LEVEL	1	-
37	09280-17003-000 SUB: 09280-17003L000	O RING, D:3.1 ID:16.8	1	Rp2.000
38	11347-46G00-000	SPACER, AIR INTAKE PLATE	1	Rp11.500
39	01547-06257-000	BOLT	1	Rp14.000
40	01547-06307-000 SUB: 01547B06307N000	BOLT	1	Rp7.500
