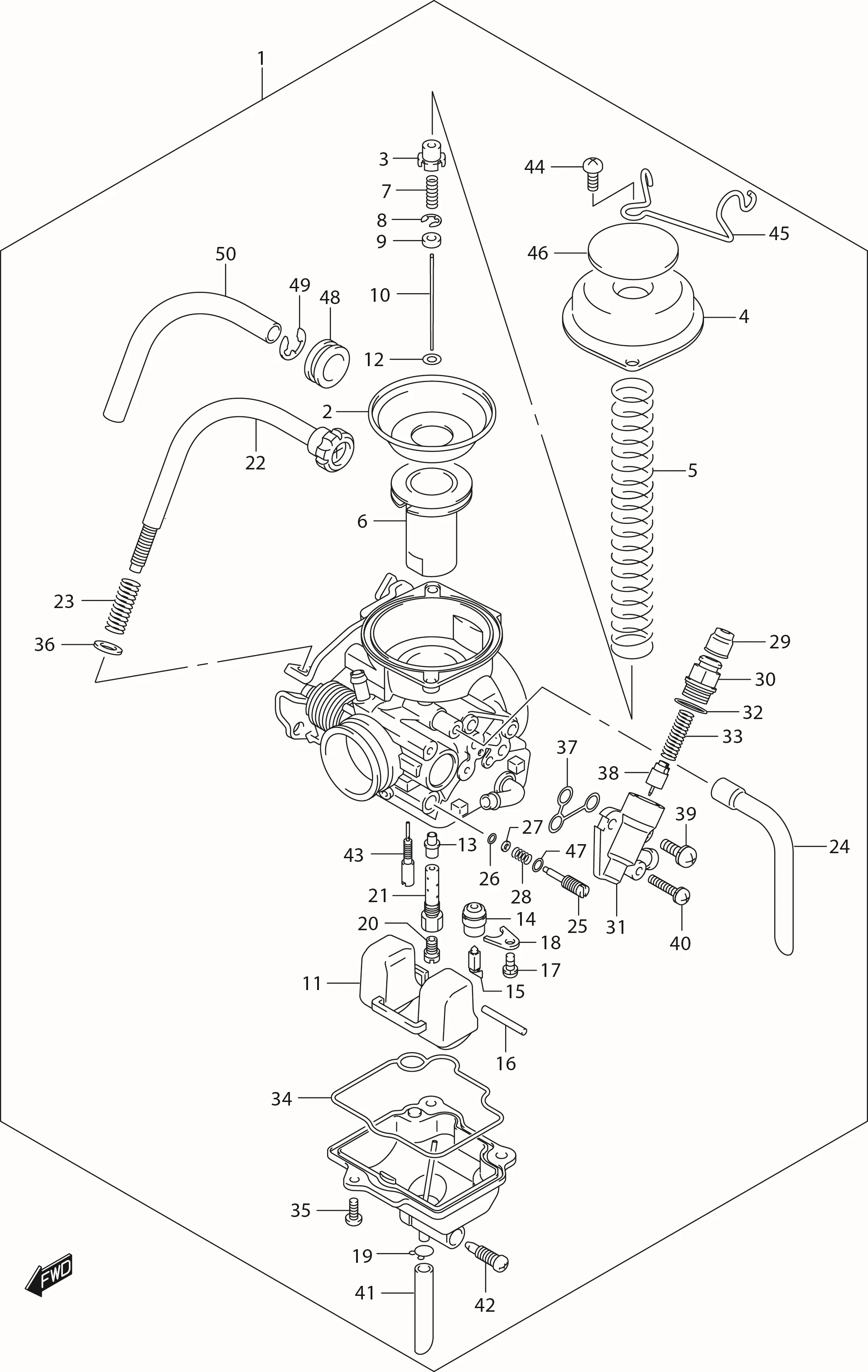

FIG.10 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13200-46G01-000	CARBURETOR ASSY	1	-
2	13507-25G00-000	?DIAPHRAGM	1	Rp24.500
3	13418-12F40-000	?HOLDER	1	Rp12.500
4	13502-46G10-000 SUB: 13502-25G00-000	?COVER, DIAPHRAGM	1	Rp32.500
5	13573-46G00-000	?SPRING	1	Rp10.000
6	13502-46G00-000	?VALVE ASSY, PISTON	1	Rp39.000
7	13481-23F00-000	?SPRING	1	Rp8.500
8	13533-98410-000	?E RING	1	Rp6.000
9	13387-23F00-000	?RING	1	Rp8.500
10	13383-46G00-000	?NEEDLE, JET	1	Rp17.000
11	13240-47E00-000	?FLOAT ASSY	1	Rp33.500
12	13382-23F00-000	?WASHER	2	Rp8.500
13	13341-46G00-000	?JET, NEEDLE	1	Rp20.000
14	DISCONTINUE SUB: 13370-46G00-000	?SEAT, VALVE	1	-
15	13551-13H00-000 SUB: 13551-46G00-000	?NEEDLE ASSY	1	Rp101.000
16	13254-20010-000	?PIN, FLOAT	1	Rp7.500
17	02112-04083-000	?SCREW	1	Rp7.500
18	13375-88C00-000	?CLIP	1	Rp7.500
19	13259-98010-000 SUB: 13529-98010-000	?CLIP	1	Rp9.500
20	09491-97004-000	?JET, MAIN (97.5)	1	Rp155.000
21	13342-46G00-000	?HOLDER, JET	1	Rp34.000
22	13267-46G00-000	?SCREW	1	Rp79.000
23	13271-24D00-000	?SPRING	1	Rp34.000
24	13686-46G00-000	?HOSE	1	Rp11.500
25	13279-23F30-000	?ADJUSTER	1	Rp31.500
26	13295-29900-000	?O RING	1	Rp8.000
27	13291-29900-000	?WASHER	1	Rp6.500
28	13268-47070-000	?SPRING	1	Rp8.000
29	13681-04010-000	?CAP	1	Rp6.500
30	13418-43410-000	?HOLDER, GUIDE	1	Rp7.500
31	13412-46G00-000	?BODY ASSY, STARTER	1	Rp52.000
32	13278-47090-000	?O RING	1	Rp5.500
33	13417-01010-000	?SPRING	1	Rp6.500
34	13258-23F00-000	?O RING	1	Rp13.500
35	02112-04107-000	?SCREW	3	Rp10.500
36	13615-43010-000	?WASHER	1	Rp17.500
37	13258-46G00-000	?O RING	1	Rp8.000
38	13411-46G00-000	?PLUNGER	1	Rp33.500
39	02112-35127-000	?SCREW	2	Rp9.500
40	DISCONTINUE SUB: 13601-04188-000	?SCREW	1	-
41	DISCONTINUE SUB: 09352-30503-600	?HOSE (3X5X600)	1	-	L:600!300
42	13247-25600-000 SUB: 13247-25G00-000	?SCREW, DRAIN	1	Rp8.500
43	09492-15011-000	?JET, PILOT	1	Rp21.000
44	02112-05107-000	?SCREW	2	Rp11.500
45	DISCONTINUE SUB: 13274-46G00-000	?CLIP	1	-
46	13500-46G00-000	?SHEET	1	Rp12.500
47	13509-17C00-000	?O RING	1	Rp7.500
48	DISCONTINUE SUB: 13593-46G00-000	?RING	1	-
49	13617-12C00-000	?E RING	1	-
50	DISCONTINUE SUB: 13683-46G00-000	?HOSE	1	-
