S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETS (K10B)ENGINE GASKETS (K10C)CYLINDER HEAD (K10B)CYLINDER HEAD (K10C)CYLINDER (K10B)CYLINDER (K10C)OIL PAN (K10B)OIL PAN (K10C)ENGINE MOUNTING(K10B:5MT)ENGINE MOUNTING(K10B:5AGS)ENGINE MOUNTING(K10C)CRANKSHAFT(K10B)CRANKSHAFT(K10C)CAM SHAFT/VALVE(K10B)CAM SHAFT/VALVE(K10C)CAM CHAIN(K10B)CAM CHAIN(K10C)INTAKE MANIFOLD(K10B)INTAKE MANIFOLD(K10C)THROTTLE BODY(K10B)THROTTLE BODY(K10C)AIR CLEANER(K10B)AIR CLEANER(K10C)EXHAUST MANIFOLD(K10B)EXHAUST MANIFOLD(K10C)MUFFLER(K10B)MUFFLER(K10C)FUEL PUMP (RHD)DELIVERY PIPE(K10B)DELIVERY PIPE(K10C)OIL PUMP(K10B)OIL PUMP(K10C)WATER PUMPRADIATOR(K10B)RADIATOR(K10C)WATER HOSE(K10B)WATER HOSE(K10C)EMISSION CONTROL (RHD)EGR VALVE(K10C)LABEL

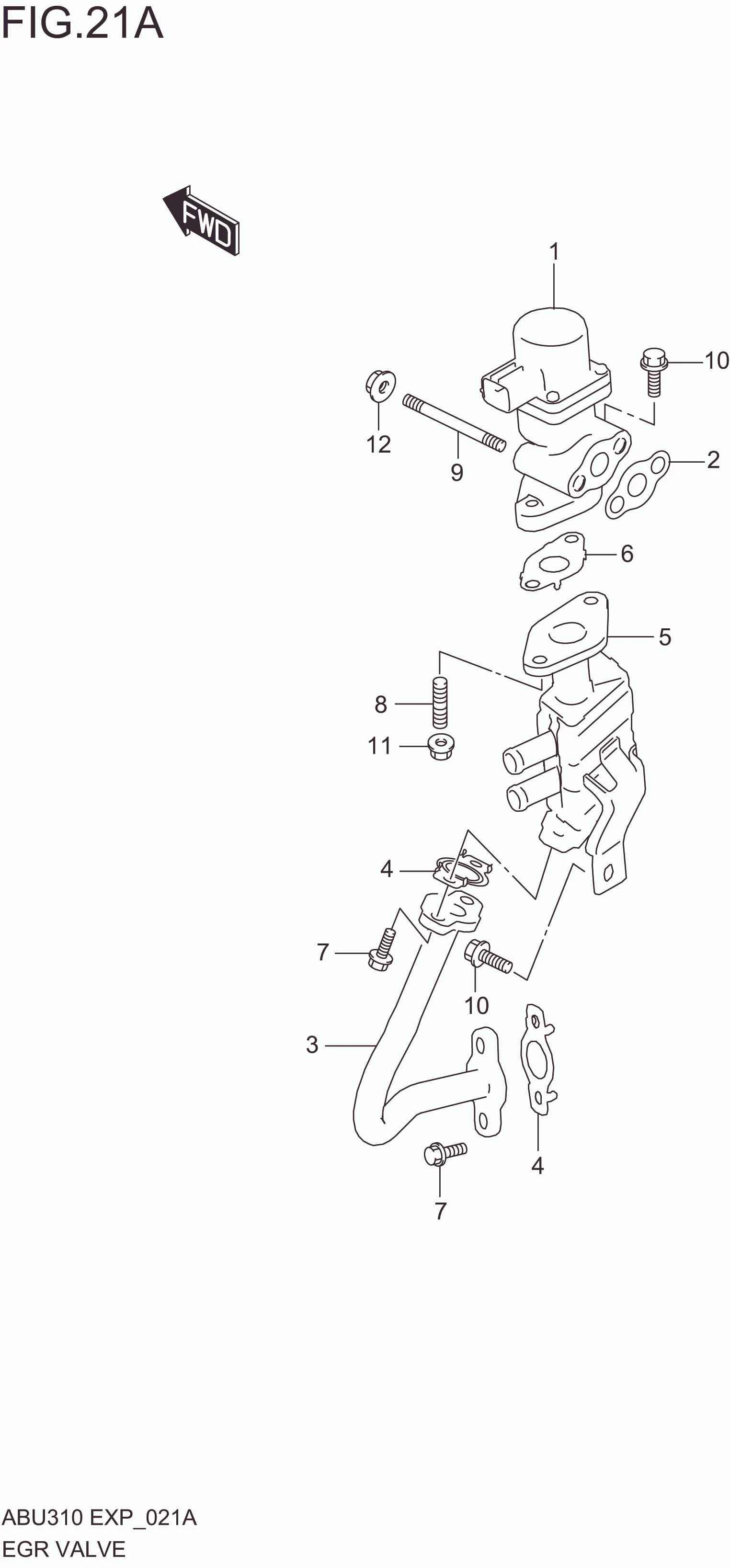

EGR VALVE(K10C)

EGR VALVE(K10C)
No No. Part Description Qty Price Per Pcs Remarks
1 18111M68PA0-000 VALVE, EGR 1 Rp1.446.000
2 18529M68P00-000 GASKET,EGR VALVE 1 Rp6.500
3 18530M81R10-000 PIPE, EGR 1 Rp310.500
4 18533-68P00-000 GASKET,EGR PIPE 2 Rp30.000
5 18710M81R20-000 COOLER, EGR 1 Rp1.833.000
6 18715M68P00-000 GASKET,EGR COOLER 1 Rp9.000
7 09103-06267-000 BOLT,EGR PIPE 4 Rp16.000
8 DISCONTINUE
SUB: 01421-0816A-000		 BOLT,EGR VALVE STUD 1 -
9 01421-0860A-000 BOLT,EGR VALVE STUD NO.2 2 Rp29.500
10 01550-0820A-000 BOLT,EGR COOLER 2 Rp5.500
11 08316-1008A-000 NUT,EGR VALVE 1 Rp3.500
12 08316-1008A-000 NUT,EGR VALVE NO.2 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
